Basement Waterproofing and Wall Repair Methods: A Complete Technical Guide
Basement repair methods fall into two categories: waterproofing systems that manage water, and wall stabilization systems that counteract lateral earth pressure. The right method depends on what your basement is facing — water entry alone, structural wall displacement, or both. This guide covers 11 methods used in Kansas City and Des Moines homes, each with a dedicated page explaining how it works, when it is appropriate, and what its limitations are.
Start with the problem, not the solution. If you have not yet identified what is happening in your basement, our symptom identification guide helps you determine whether you are dealing with water entry, wall movement, or both. The science of water pressure explains the forces that drive these problems.
Waterproofing Methods
Waterproofing addresses water entry without modifying the wall structure. These methods manage water that has reached or passed through the foundation — intercepting it, redirecting it, and removing it before it damages the basement interior.

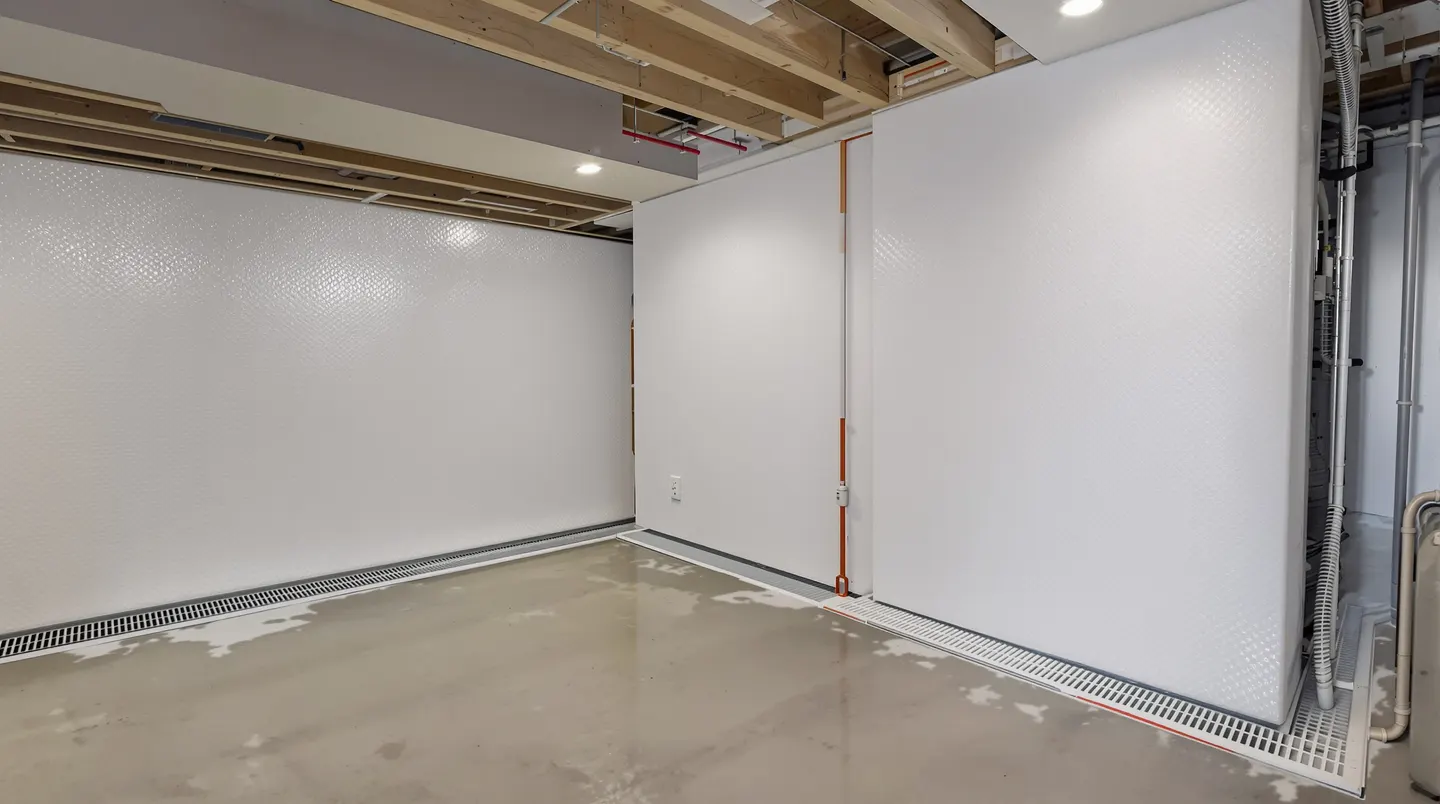

Interior Waterproofing
Perimeter drain tile, sump pit, vapor barriers, and dehumidification. The most common system installed in KC and Des Moines basements — manages water from inside without excavation.
Exterior Waterproofing
Full excavation, waterproof membrane, exterior drain tile, and gravel backfill. Stops water before it contacts the wall. More thorough but significantly more disruptive and expensive.
Interior vs. Exterior Waterproofing
A side-by-side comparison with a decision framework for choosing between interior and exterior approaches based on your home's conditions.
Sump Pump Systems
Primary pump, battery backup, sizing, discharge rules, and maintenance. The final component in any interior waterproofing system — collects and removes the water.
French Drain Systems
Interior and exterior French drains — gravel-filled trenches with perforated pipe that intercept and redirect groundwater before it reaches your basement.
Crack Repair Injection
Epoxy and polyurethane injection for sealing individual cracks in poured concrete walls. When cracks are a water issue versus a structural warning sign.

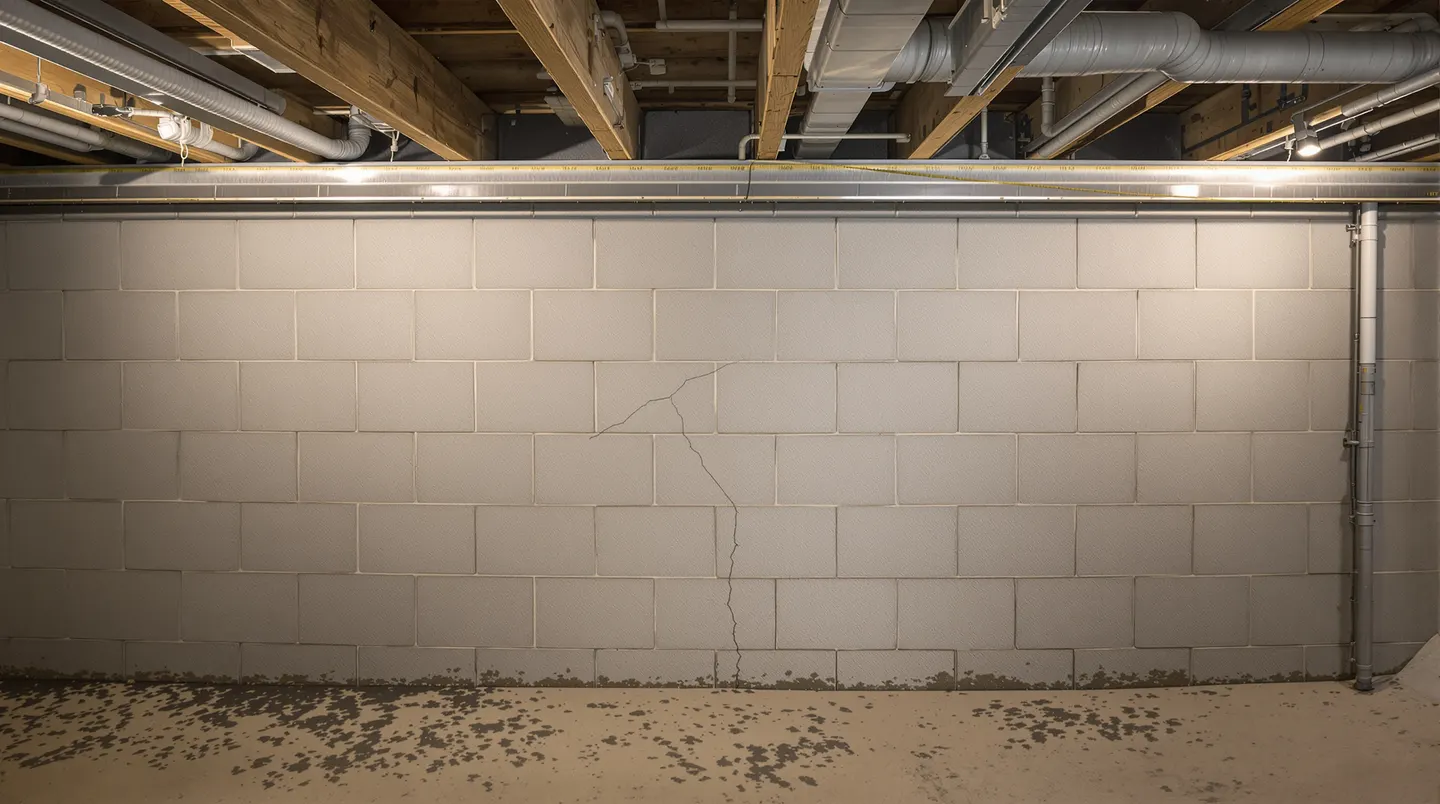

Wall Stabilization Methods
Wall stabilization addresses structural displacement from lateral earth pressure. When a basement wall has bowed inward, it needs reinforcement to resist the ongoing soil load. The method depends on the amount of deflection, the wall type, and whether exterior access is available. For a breakdown of deflection stages and what each means, see the 4-stage bowing wall severity scale.
Carbon Fiber Straps
Epoxy-bonded carbon fiber reinforcement strips. Least invasive. Best for walls with less than 2 inches of deflection. Prevents further movement without excavation.
Wall Anchors
Plate anchor system with threaded steel rod to earth anchor in stable soil. Can stabilize and gradually straighten walls over time through seasonal tightening.
Steel I-Beams
Vertical steel beams braced against the floor structure. Prevents further wall movement. No excavation required. Suited for walls where exterior access is limited.
Helical Tiebacks
Screw-shaft anchors drilled through the wall into stable soil. For severe bowing exceeding 2 inches. The most aggressive non-replacement stabilization method.
Foundation Wall Replacement
Last resort for walls that have failed beyond repair from sustained lateral water pressure. Full excavation, wall removal, and reconstruction.
How Do You Choose the Right Method?
The right repair matches the specific problem. Water entry without wall movement calls for waterproofing. Wall movement calls for stabilization. Many homes need both — a waterproofing system to manage water and a stabilization method to reinforce the wall. The decision starts with identifying your symptoms and measuring any wall deflection.
| Problem | Primary Methods | Key Factor |
|---|---|---|
| Water at cove joint or floor | Interior waterproofing + sump pump | Most common, addresses 70%+ of residential water issues |
| Water through wall cracks (poured) | Crack injection | Crack must be stable (not actively widening) |
| Water through multiple sources | Exterior waterproofing | When interior system cannot keep up with volume |
| Wall bowing <2 inches | Carbon fiber straps or wall anchors | Both arrest movement; anchors can also straighten |
| Wall bowing 2-4 inches | Wall anchors, helical tiebacks, or I-beams | Severity determines whether straightening is possible |
| Wall bowing >4 inches | Helical tiebacks or wall replacement | Structural evaluation required before proceeding |
Cost varies significantly by method, wall length, and severity. For current price ranges across all methods in Kansas City and Des Moines, see our basement waterproofing and wall repair cost guide.
