Carbon Fiber Straps: How Fiber Reinforcement Arrests Bowing Basement Walls

How Do Carbon Fiber Straps Work?

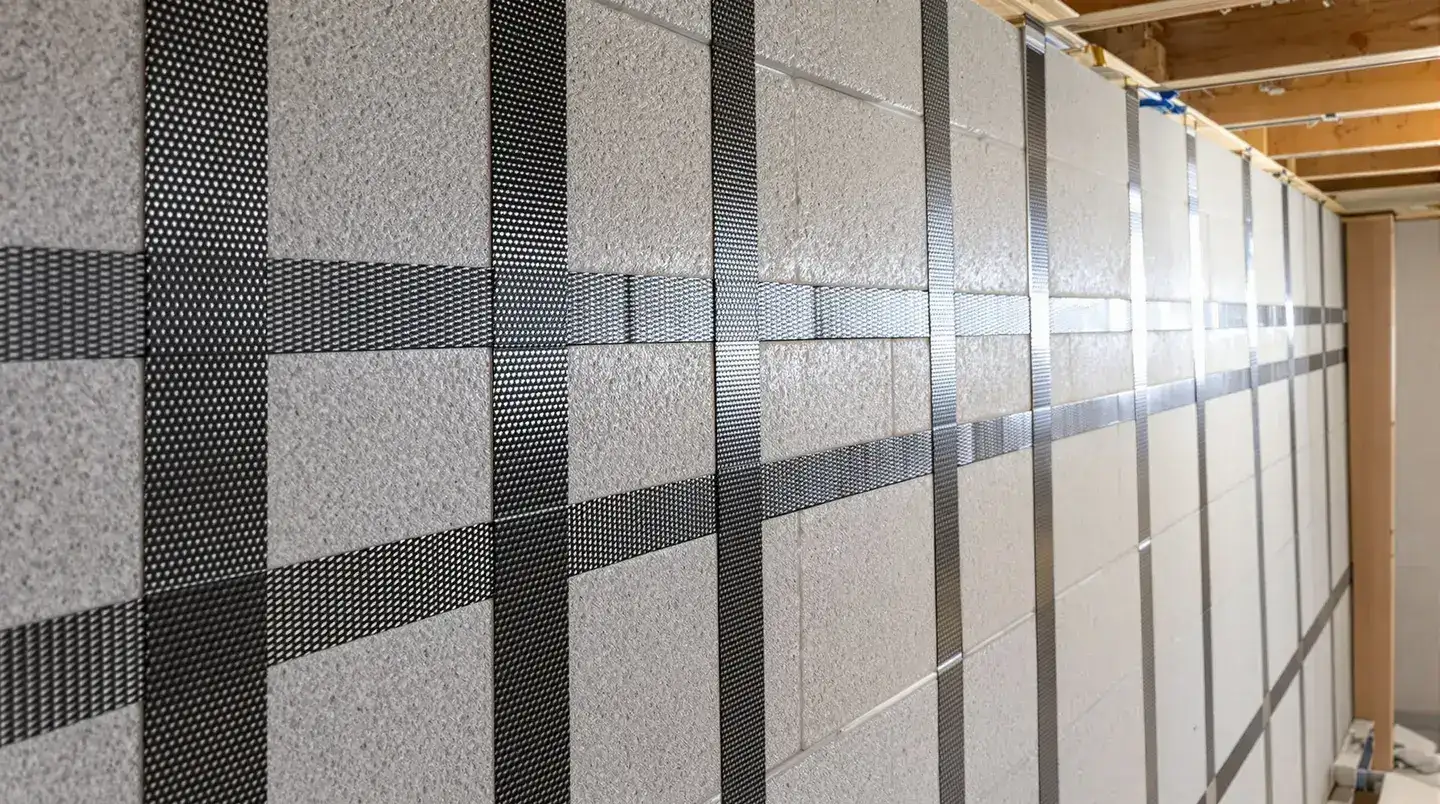

Unidirectional carbon fiber strips are bonded to the wall face with epoxy matrix saturation to create a composite reinforcement. The carbon fiber sheet is saturated with structural epoxy resin, pressed onto the prepared wall surface, and allowed to cure. Once cured, the epoxy matrix bonds the fiber to the concrete surface so completely that the strap and wall act as a single composite structure. The strap's tensile strength rating resists the inward pulling force that lateral earth pressure exerts on the wall.

The straps work by providing tensile reinforcement where the wall has none. A concrete or block wall is strong in compression but weak in tension. When lateral soil pressure pushes the wall inward, the interior face of the wall goes into tension — it is being stretched. This is where concrete fails and cracks appear. Carbon fiber has a tensile strength rating roughly 10 times that of steel per unit weight. By bonding carbon fiber to the tension face of the wall, the strap supplies the tensile resistance that concrete cannot provide on its own.

The deflection arrest capacity of a properly installed strap prevents the wall from moving beyond its current position. Each strap resists a specific lateral load based on its width, the fiber's tensile strength rating, and the quality of the epoxy bond to the wall. As lateral pressure pushes the wall inward, the strap goes into tension and resists the movement. The wall is locked at its current deflection — it cannot bow further inward as long as the strap's capacity exceeds the lateral load. For a detailed explanation of how lateral earth pressure generates these forces, see our analysis of the science behind basement water pressure.

What Makes Carbon Fiber Effective for Wall Stabilization?

The tensile strength of carbon fiber is approximately 10 times that of steel per unit weight. A single carbon fiber strap only a few millimeters thick can resist thousands of pounds of tensile force. This strength-to-weight ratio is what allows a thin, flat strip bonded to a wall surface to provide meaningful structural reinforcement without adding bulk, weight, or protrusion to the wall. The strap does not need to be thick or heavy to do its job — the material's inherent tensile strength rating handles the load.

The epoxy matrix bonds fiber to the concrete surface, creating a composite that distributes lateral load across the strap width. Epoxy matrix saturation is not just glue — it is the mechanism that transfers load between the wall and the carbon fiber. When the wall tries to bow inward, the stress transfers through the epoxy bond into the carbon fiber, which resists it. The epoxy distributes this load uniformly across the full width and length of the strap. A wider strap at the specified strap spacing interval provides greater total resistance by distributing load across more wall area.

Carbon fiber does not corrode, fatigue, or lose strength over time. Unlike steel reinforcement that can rust when exposed to basement moisture, carbon fiber is chemically inert in typical basement environments. It does not expand when wet, does not weaken from freeze-thaw cycling, and does not require maintenance or protective coatings. The deflection arrest capacity remains constant for the life of the installation, provided the epoxy bond to the wall surface remains intact.

The flat profile preserves usable basement space. A carbon fiber strap adds less than 1/4 inch of thickness to the wall surface. Compared to steel I-beams that protrude 4 to 6 inches into the basement, or wall anchors that leave a bearing plate on the wall face, carbon fiber straps have essentially zero impact on interior space. For finished basements or basements where space matters, this is a significant practical advantage.

How Are Carbon Fiber Straps Installed?

Substrate preparation grinding is the most critical step in the entire installation. The wall surface must be flat, clean, and free of paint, efflorescence, loose mortar, and surface contaminants before the epoxy can bond. A grinder is used to smooth the wall surface at each strap location, removing any irregularities that would prevent full contact between the epoxy and the concrete. Wall surface profiling creates a slightly roughened texture that improves mechanical adhesion. If the substrate is not properly prepared, the epoxy bond will fail before the carbon fiber reaches its tensile capacity.

Strap locations are marked at the specified strap spacing interval. An engineer determines how many straps the wall needs and how far apart they should be placed. Typical strap spacing interval is 4 to 6 feet on center for block walls with moderate deflection. The spacing depends on the lateral load, the wall height, and the strap width. Each strap location is marked on the wall from floor to ceiling — the strap must span the full height of the wall to transfer load into the floor system above and the footing below.

Epoxy is applied to the wall, the carbon fiber sheet is saturated in resin, and the strap is pressed onto the wall surface. The installation follows a wet layup process. A base coat of structural epoxy is rolled onto the prepared wall surface at the strap location. The unidirectional carbon fiber sheet is then saturated with epoxy resin — this is the epoxy matrix saturation step that ensures every fiber is fully encapsulated. The saturated strap is pressed onto the wall surface and smoothed to eliminate air pockets. A top coat of epoxy is applied over the strap to seal and protect the fiber.

Resin cure time is typically 24 to 72 hours for full bond strength. The epoxy begins to set within hours but does not reach its full structural capacity until the resin cure time is complete. During this period, the straps should not be disturbed, painted, or loaded. Temperature and humidity affect cure rate — cooler basement temperatures may extend the cure time toward the upper end of the range. Once cured, the strap is permanent and requires no ongoing maintenance or adjustment.

When Are Carbon Fiber Straps the Right Choice?

Carbon fiber straps are best suited for walls with less than 2 inches of inward deflection. At this level of bowing — Stage 1 to early Stage 2 on the basement wall bowing severity scale — the wall has moved enough to confirm active lateral pressure but has not exceeded the range where carbon fiber can effectively arrest further movement. The deflection arrest capacity of standard carbon fiber strap systems matches the lateral loads typical of walls in this deflection range.

Block walls with horizontal cracking at mortar joints are the most common application. The horizontal crack at mid-height indicates the wall is bending under lateral load and the mortar joint has failed in tension. Carbon fiber straps bridge across this crack and provide the tensile reinforcement the mortar joint can no longer supply. The strap prevents the crack from opening further and arrests the bowing at its current measurement.

Carbon fiber is the least invasive wall stabilization method available. No excavation is required. No exterior access is needed. Installation is completed entirely from inside the basement in a single day. There is no disruption to landscaping, driveways, or neighboring property. For homeowners who want to stabilize a bowing wall with minimal disruption, carbon fiber straps are typically the first option considered.

Walls with deflection exceeding 2 inches need a stronger intervention. When bowing reaches Stage 3 — 2 to 4 inches of deflection — the lateral load on the wall exceeds what carbon fiber straps can reliably resist. At this stage, wall anchor systems that can both stabilize and gradually straighten the wall are typically recommended. Wall anchors connect the wall to stable soil beyond the pressure zone and offer wall straightening potential that carbon fiber cannot provide. Our complete guide to basement water pressure helps you determine which method fits your situation.

What Are the Limitations of Carbon Fiber Straps?

Carbon fiber straps do not straighten the wall — they only arrest further movement. Once installed, the straps hold the wall at its current deflection. The wall will not move back toward plumb on its own, and the straps cannot pull it back. If wall straightening is a priority, wall anchor systems with a seasonal tightening schedule are the appropriate method. Carbon fiber is a stabilization-only solution.

The epoxy bond requires a clean, relatively flat wall surface. Walls with severe surface deterioration — crumbling block faces, deeply recessed mortar joints, spalling concrete, or heavy efflorescence buildup — may not provide an adequate substrate for epoxy adhesion. Substrate preparation grinding can address minor surface irregularities, but it cannot compensate for a wall surface that is actively disintegrating. If the wall material itself is failing, the epoxy bond will not achieve its rated strength regardless of installation quality.

Straps are not effective on walls with severe mortar deterioration or crumbling block faces. The deflection arrest capacity of the system depends on load transfer from the wall through the epoxy into the carbon fiber. If the wall surface layer separates from the structural core — as happens with severely weathered or deteriorated block — the strap will peel away from the wall rather than resist the lateral load. A wall in this condition needs structural reinforcement that does not depend on surface bonding.

If deflection increases after installation, the wall pressure has exceeded the strap capacity. Carbon fiber straps have a defined load limit based on fiber width, tensile strength rating, and strap spacing interval. If lateral pressure increases beyond what the straps were designed to resist — due to changes in drainage, soil conditions, or hydrostatic pressure — the wall may continue to bow despite the straps. Any measurable increase in deflection after strap installation indicates that additional reinforcement is needed. For current pricing on all wall stabilization methods, see the basement waterproofing and wall repair cost guide.
