Crack Repair Injection: Epoxy vs. Polyurethane for Sealing Basement Wall Cracks

What Is Crack Injection and When Does It Work?

Crack injection seals individual cracks in poured concrete walls by filling them with a liquid resin that cures in place. The resin is pumped through surface-mounted injection ports at low pressure, allowing it to penetrate the full depth of the crack from interior face to exterior face. Once cured, the resin forms a continuous seal that prevents water from passing through the crack. The method is specific to poured concrete — it does not work on concrete block walls, where water enters through hollow cores and mortar joints rather than through discrete cracks.

Two materials are used: epoxy for structural bond restoration and polyurethane for flexible water stop. Epoxy is a rigid, high-strength adhesive that bonds the two faces of the crack together, restoring the wall to near-original tensile strength across the repair. Polyurethane is a foam that expands to fill the full crack depth, remains flexible after curing, and reacts with water to accelerate its own cure. The choice between them depends on whether the crack is a structural concern, a water-only problem, or both.

Crack injection works on stable cracks — cracks that have finished moving. Most cracks in poured concrete basement walls are shrinkage cracks that formed during the initial concrete curing process and have not moved since. These are ideal candidates for injection. Cracks caused by one-time settlement events that have since stabilized are also good candidates. Cracks that are actively widening, however, indicate ongoing movement — from lateral soil pressure, active settlement, or thermal cycling — and injection will not hold on a crack that continues to change dimension.

The crack width threshold for injection ranges from hairline to roughly one-quarter inch for epoxy and up to one-half inch for polyurethane. Hairline cracks under one-sixteenth of an inch are injectable but require low-viscosity resins and slower injection rates. Cracks wider than one-quarter inch in a poured wall are uncommon from shrinkage alone and may indicate structural movement that warrants evaluation before any injection is attempted.

How Does Epoxy Injection Differ from Polyurethane?

Epoxy and polyurethane serve different purposes, and selecting the wrong material for the situation can lead to premature failure. Epoxy is a two-part adhesive that cures to a rigid solid with tensile strength exceeding that of the concrete itself. It bonds the crack faces together permanently. Polyurethane is a single-component resin that reacts with moisture to produce a closed-cell foam. It fills the crack through polyurethane foam expansion, remains flexible after cure, and stretches slightly without losing its seal.

Epoxy is the correct choice when the goal is to restore structural continuity across the crack. A poured wall with a vertical crack that a structural engineer has evaluated and determined to be a shrinkage crack — not caused by lateral loading or settlement — can be bonded back together with epoxy so the wall behaves as though the crack never existed. The cured epoxy has a higher tensile strength than the concrete on either side, meaning the repaired section is actually stronger than the adjacent wall. The limitation is that epoxy cannot be injected into cracks with active water flow. The crack must be dry or only slightly damp at the time of injection, because water prevents the epoxy from bonding to the concrete surfaces.

Polyurethane is the correct choice when the crack is leaking water and the only goal is to stop that water. Because polyurethane is water-reactive, it can be injected into a crack that is actively weeping. Contact with water accelerates the cure and causes the resin to foam and expand, filling voids and irregular crack geometry that a rigid epoxy might not fully penetrate. The cured foam maintains flexible sealant elongation — it can stretch slightly with thermal expansion and contraction without cracking or debonding. This flexibility makes polyurethane more forgiving on cracks that experience minor seasonal movement.

The crack width threshold is wider for polyurethane because the foam expansion fills more volume. Epoxy flows by gravity and injection pressure alone, so wider cracks require more material and longer injection times. Polyurethane expands as it cures, so a smaller volume of injected resin fills a larger crack. For cracks approaching or exceeding one-quarter inch in a poured wall, polyurethane is the practical choice regardless of structural considerations, because the crack width itself suggests movement that a rigid epoxy cannot accommodate.

How Is Crack Injection Performed?

The injection process follows a standard sequence: prepare the crack surface, install injection ports, seal the surface between ports, inject resin starting at the lowest port, and work upward. Each step serves a specific purpose in ensuring the resin reaches full crack depth rather than simply filling the visible surface. A rushed or improperly sequenced injection produces a surface-only repair that fails when water finds a path around the shallow seal.

Crack chase routing opens the surface of the crack into a shallow V-groove to ensure a clean bonding surface for the surface seal paste. A grinder or rotary tool cuts a groove approximately one-quarter inch wide and one-quarter inch deep along the visible crack line. This removes surface contamination — paint, efflorescence, loose concrete — and provides a mechanical key for the surface seal to grip. The crack chase routing step is often skipped in budget installations, but it directly affects how well the surface seal holds injection pressure.

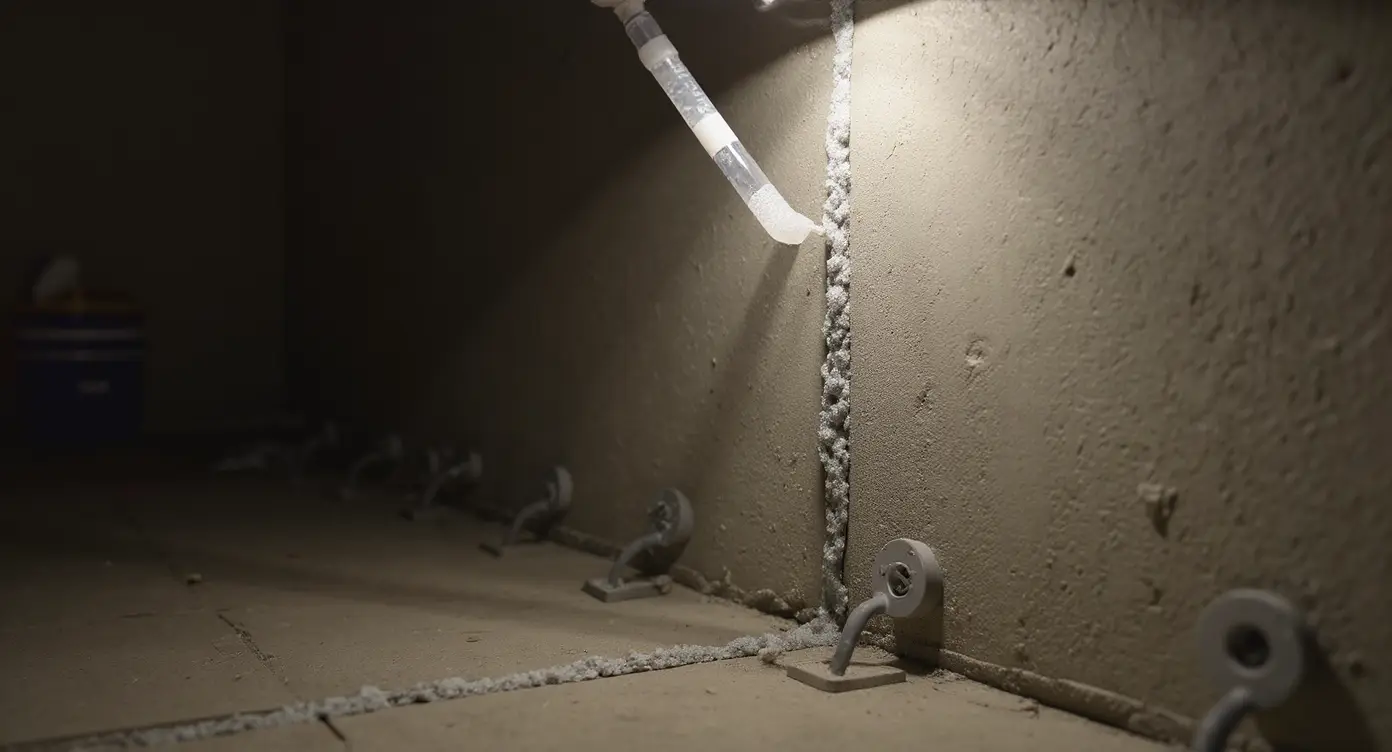

Injection ports are installed at regular intervals along the crack, typically six to twelve inches apart. These small plastic or aluminum fittings are bonded to the wall surface directly over the crack using epoxy paste. Each port provides an entry point for the injection gun. The spacing depends on crack width and wall thickness — narrower cracks require closer port spacing because the resin travels shorter distances before friction slows its flow. In an eight-inch poured wall, ports spaced every eight inches are common.

Surface seal paste is applied over the crack between the ports to create a closed channel for injection pressure. This fast-curing epoxy paste covers the entire visible crack line on the interior wall surface. Without this seal, injected resin would simply leak out the front of the crack rather than being forced through to the exterior face. The surface seal must cure fully — typically two to four hours — before injection begins. Any gap or thin spot in the seal will blow out under injection pressure, releasing the resin before it penetrates to full depth.

Injection begins at the lowest port and works upward, allowing gravity to assist resin flow. The injection gun connects to the lowest port and delivers resin at controlled pressure. As the crack fills from the bottom, resin rises until it begins to flow from the next port above. When resin appears at the adjacent port, the lower port is capped and the gun moves to the next port. This port-to-port progression continues upward until all ports have been injected and resin has been observed flowing from the topmost port. Injection pressure gauge monitoring throughout the process confirms that resin is moving through the crack rather than building pressure behind a blockage.

After the resin cures, the ports are removed and the surface seal paste is ground flush with the wall. Cure time depends on the material — epoxy requires 24 to 72 hours for full structural cure, while polyurethane reaches functional cure within hours due to its water-reactive chemistry. The ports are snapped off or cut flush, and the remaining surface paste can be ground smooth if the wall will be finished or painted. The finished repair leaves a barely visible line on the wall surface.

When Do Cracks Indicate a Structural Problem?

Most cracks in poured concrete basement walls are non-structural shrinkage cracks that formed within the first few years after construction. These vertical or near-vertical cracks are caused by the concrete contracting as it cures and losing moisture. They are typically hairline to one-eighth inch wide, run vertically or diagonally from a stress concentration point (window corner, pipe penetration, mid-wall), and have not changed width since they formed. These cracks are water entry paths, not structural failures, and they are appropriate candidates for injection.

Horizontal cracks in block walls are a different situation entirely — they indicate lateral soil pressure exceeding the wall's capacity. A horizontal crack running along a mortar joint, typically at the mid-height of the wall, means the wall is bowing inward under sustained lateral earth pressure. This is not a water management issue. It is a structural displacement problem that requires wall stabilization, not crack injection. For a detailed explanation of bowing wall stages and repair methods, see the bowing basement wall severity guide.

Widening cracks in any wall type indicate active movement, and injection will not hold. If a crack was one-sixteenth of an inch last year and is now one-eighth of an inch, the wall is still moving. Injecting a moving crack produces a temporary seal that will crack again as the movement continues. The appropriate first step is to determine what is causing the movement — lateral pressure, ongoing settlement, frost heave, or tree root pressure — and address that force before sealing the crack. A pencil mark across the crack with a date, checked monthly, is a simple way to monitor whether a crack is stable or active.

Stair-step cracks in block walls follow the mortar joints in a stepping pattern and typically indicate lateral pressure or differential settlement. Like horizontal cracks, these are structural indicators rather than simple water paths. They appear most often in the upper third of the wall where lateral pressure from saturated backfill creates the highest bending moment. Stair-step cracks in combination with wall tilt or bowing require structural evaluation before any water management approach is considered.

What Are the Limitations of Crack Injection?

Crack injection does not work on concrete block walls. Block walls do not develop the discrete, through-wall cracks that poured walls do. Water enters block walls through porous mortar joints, through the block face itself, and through open cores at the top of the wall. It then migrates downward through the hollow cores and exits at the cove joint or at the lowest mortar joint. There is no single crack to inject. Block wall water entry requires either an interior drainage and vapor barrier system or exterior waterproofing to manage the diffuse water paths.

Crack injection does not address the water pressure that caused the leak. The hydrostatic or lateral pressure that pushed water through the crack is still present after the crack is sealed. The injection eliminates one specific entry path, but the pressure remains and may find another path — a nearby shrinkage crack, a tie rod hole, a pipe penetration, or the cove joint. Injection is a targeted, crack-specific repair, not a pressure management system.

New cracks may form near a previously injected crack if pressure continues. Poured concrete walls develop shrinkage cracks at semi-predictable intervals, often every eight to twelve feet along the wall length. Sealing one crack does not prevent water from migrating to the next nearest crack under sustained pressure. Homeowners who inject one crack and see water appear at a new crack six months later are experiencing this pressure redistribution. If two or more cracks on the same wall are leaking, or if new cracks appear after injection, the problem has outgrown crack-by-crack repair.

Crack injection is not a whole-wall waterproofing solution. It addresses a single linear defect in the wall surface. A basement with water entering from the cove joint, through wall pores, through multiple cracks, or from floor-slab joints has a systemic water pressure problem that requires a perimeter drainage system — not individual crack repairs. The complete homeowner guide covers how to evaluate whether your water problem is a single-crack issue or a broader pressure condition that calls for a system-level approach.

The cost of crack injection is modest for a single crack but adds up when multiple cracks need treatment. A single crack injection typically costs far less than a perimeter drain tile system. But injecting three, four, or five cracks on the same wall — especially if new cracks continue to appear — may cost more over time than a drainage system that addresses the root cause. For a comparison of repair costs across all methods, see the basement repair cost guide.
