Exterior Basement Waterproofing: How Excavation and Membrane Systems Stop Water at the Source

What Is Exterior Waterproofing?

Exterior waterproofing is a positive-side waterproofing system, meaning the barrier is placed on the side of the wall where the water originates. The membrane sits between the soil and the concrete, intercepting water before it can penetrate or saturate the wall. This is the opposite of interior (negative-side) waterproofing, which manages water that has already passed through or under the wall.

The system requires full excavation down to the footing on the exterior of the foundation. Once the wall face is exposed and cleaned, a waterproof membrane is applied across the entire below-grade surface. A protection board is installed over the membrane to prevent damage during backfill. Drain tile is laid at the base of the footing to collect any water that reaches that depth, and the trench is backfilled with drainage aggregate that allows water to flow downward to the drain tile rather than pooling against the membrane.

The principle is straightforward: water never contacts the concrete. In a properly installed exterior system, groundwater migrates through the soil toward the foundation, hits the drainage aggregate backfill, flows downward by gravity to the drain tile at the footing, and is carried away to a discharge point or sump system. The membrane serves as a secondary barrier in case any water bypasses the drain tile. Together, these components create a foundation wrap that addresses both wall-face water entry and footing-level water migration.

What Are the Components of an Exterior Waterproofing System?

Excavation

Excavation is the enabling step — without it, nothing else can be installed. The trench must extend from grade level down to the top of the footing, typically seven to nine feet deep for a full-depth basement. The trench width must accommodate workers, membrane application equipment, and drain tile placement — usually three to four feet wide at the bottom. In Kansas City's heavy Wymore and Ladoga clay soils, trench walls are unstable and require excavation shoring or benching to prevent collapse.

Waterproof Membrane

The waterproof membrane is the primary barrier, and three types are used in residential exterior waterproofing. A liquid-applied membrane is sprayed or rolled onto the cleaned wall face, curing into a seamless rubber-like coating typically 40 to 60 mils thick. The advantage of liquid-applied membrane is that it conforms to irregular surfaces, fills minor cracks, and has no seams that can fail. Waterproof coating mil thickness matters — thinner coatings degrade faster and offer less resistance to root penetration and soil abrasion.

Sheet membrane is a pre-manufactured rubberized asphalt or thermoplastic sheet adhered to the wall in overlapping courses. Sheet membranes offer consistent thickness and factory-controlled quality, but the seams between sheets are potential failure points. Proper lapping — typically six inches of overlap with adhesive or heat-welding — is critical. Sheet membranes perform well on flat, uniform wall surfaces but are harder to apply around pipe penetrations, corners, and irregular block surfaces.

Bentonite clay membrane is a composite sheet containing a layer of sodium bentonite clay sandwiched between geotextile fabrics. When the bentonite clay membrane contacts groundwater, the bentonite swells to many times its dry volume, forming a dense, self-sealing gel barrier. This swelling property means the membrane can self-heal minor punctures and gaps. Bentonite membranes are particularly effective in Kansas City's expansive clay soils because they accommodate the seasonal swell-shrink movement of the surrounding soil without losing their seal.

Protection Board

Protection board is a rigid or semi-rigid panel installed over the membrane to shield it from damage during backfill. Without it, rocks, debris, and equipment in the backfill material can puncture or tear the membrane. Protection board is typically high-density polystyrene, fiberglass, or a purpose-built drainage mat. Some protection boards double as drainage planes, channeling water downward along the wall face to the drain tile below.

Exterior Drain Tile

Exterior drain tile is perforated pipe laid at the base of the footing to collect and redirect groundwater before it can build hydrostatic pressure. The pipe sits in a bed of washed drainage aggregate — clean gravel or crushed stone — wrapped in filter fabric to prevent soil fines from clogging the perforations. The drain tile runs the length of the excavated wall and pitches toward a discharge point, daylight outlet, or connection to an interior sump system.

Drainage Aggregate Backfill

The excavated trench is not backfilled with the original soil. Native clay soil holds water against the foundation — exactly what the system is designed to prevent. Instead, the lower portion of the trench is backfilled with drainage aggregate — clean, washed gravel or crushed stone — that allows water to flow freely downward to the drain tile. The upper portion may be backfilled with the original soil or a mix, with the top 12 inches graded to direct surface water away from the foundation.

How Is Exterior Waterproofing Installed?

Step one is excavation shoring and trench preparation. The crew establishes the excavation zone, removes landscaping and hardscaping within the work area, and begins digging from grade down to the footing. In soils prone to collapse — including the clay soils common across both Kansas City and Des Moines — the trench walls must be shored with bracing or stepped back in benches to prevent cave-in. Equipment access dictates which walls can be excavated; the excavator needs a clear path to the foundation perimeter.

Step two is cleaning and preparing the wall face. Once exposed, the exterior wall surface is power-washed or wire-brushed to remove soil, old coatings, root material, and loose concrete. Any cracks wider than a hairline are filled with hydraulic cement or compatible patching material. The wall must be clean, dry, and structurally sound before membrane application. In block-wall foundations, open mortar joints are repointed to create a uniform surface for the membrane to adhere to.

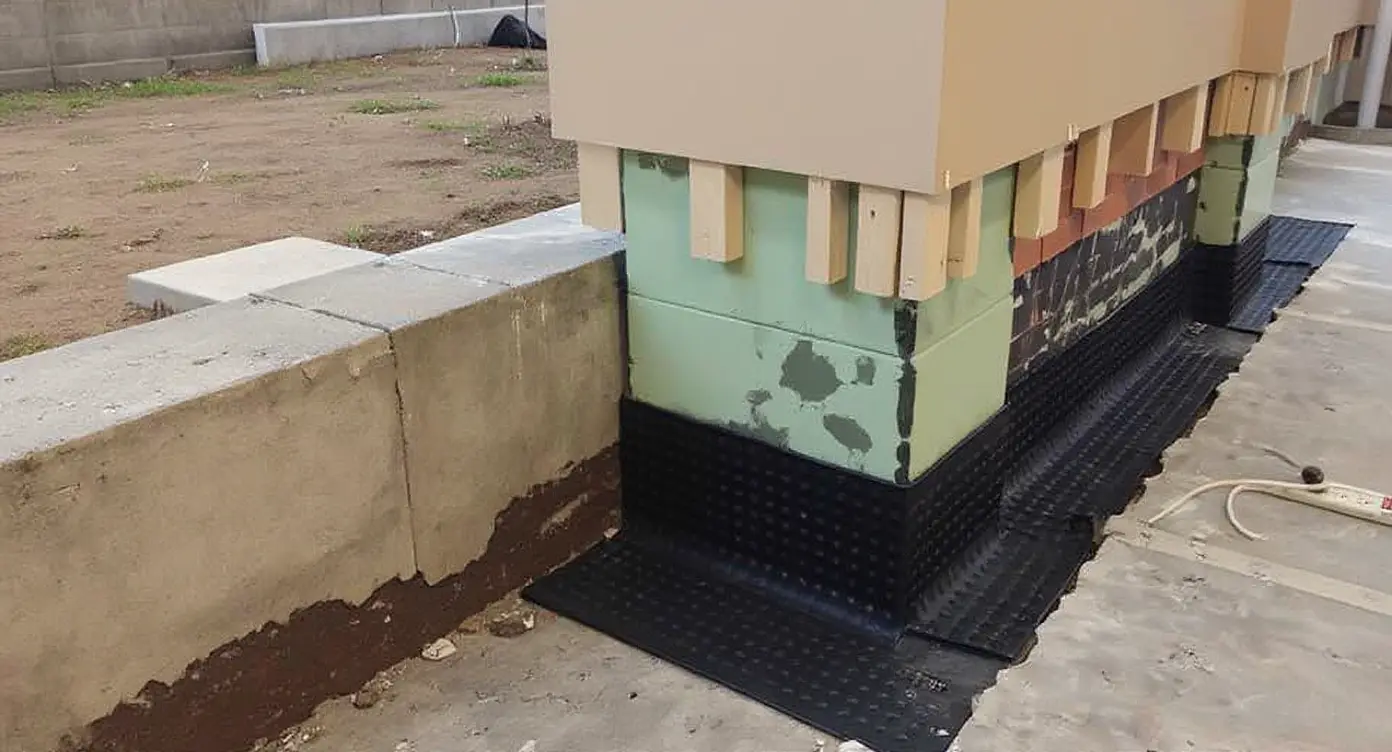

Step three is membrane application. For a liquid-applied membrane, the material is sprayed or rolled in multiple passes to achieve the specified waterproof coating mil thickness — typically 40 to 60 mils when cured. The applicator works from the footing up to above the grade line, ensuring continuous coverage with no holidays (missed spots). For sheet membrane, panels are adhered starting at the footing and overlapping upward, with each course lapping the one below it by at least six inches. Bentonite clay membrane panels are mechanically fastened or adhered with manufacturer-specified methods.

Step four is protection board installation. Rigid panels are placed over the membrane from footing to above grade. Panels are mechanically fastened or adhesive-attached, depending on the membrane type. The protection board must cover the entire membrane surface with no exposed gaps. At the footing transition — where the wall meets the horizontal footing — the protection board terminates and the drain tile system begins.

Step five is drain tile placement at the footing. A bed of drainage aggregate is placed alongside the footing. Perforated pipe is laid on the aggregate with perforations facing downward, pitched at a minimum slope of one-eighth inch per foot toward the discharge point. Filter fabric wraps the pipe and aggregate to exclude fine soil particles. The drain tile connects to a discharge outlet — a daylight drain on a sloped lot, a dry well, or a pipe run to the interior sump pit.

Step six is drainage aggregate backfill and grade restoration. Clean washed gravel fills the lower two-thirds of the trench, surrounding the drain tile and covering the protection board. The upper portion is backfilled with compactable fill, and the final 12 inches are graded to slope away from the foundation at a minimum of six inches of fall over the first ten feet. Landscaping, sod, and hardscaping are restored as a final step, though full settlement of the backfill takes one to two seasons.

When Is Exterior Waterproofing the Right Choice?

Exterior waterproofing is the correct approach when water is entering through the wall face itself — not just at the cove joint where the wall meets the floor. Wall-face water entry indicates that the concrete or block is saturated and water is being forced through the wall material by lateral earth pressure and hydrostatic pressure. An interior drain tile system collects water at the floor level but does nothing to stop the wall from absorbing water. Only an exterior membrane prevents the wall from becoming saturated in the first place.

Homes with deteriorated or absent exterior coatings are strong candidates. Many older Kansas City and Des Moines homes were built with only a thin dampproofing coat — asphalt emulsion sprayed on the exterior wall before backfill. This coating degrades over 20 to 40 years, eventually losing its ability to resist water. When dampproofing fails, the full wall surface becomes permeable. Replacing this coating with a true waterproof membrane — one rated for hydrostatic pressure resistance rather than just dampness — restores the exterior barrier.

New construction is the ideal time for exterior waterproofing because the wall is already exposed before backfill. Applying a membrane, installing protection board, and laying exterior drain tile during construction adds modest cost compared to the expense of excavating an existing home years later. For new builds in areas with known high water tables — common in Des Moines glacial till zones and low-lying Kansas City neighborhoods — exterior waterproofing during construction is a sound investment.

Some situations demand exterior waterproofing because an interior system cannot manage the water volume. If hydrostatic pressure is high enough to force water through the wall at rates that overwhelm interior collection, the only way to reduce the load is to intercept water on the outside before it reaches the concrete. A full foundation wrap — exterior membrane plus exterior drain tile on all accessible walls — is the most aggressive water management strategy available for residential basements.

What Are the Practical Constraints of Exterior Waterproofing?

Equipment access is the first constraint. An excavator must be able to reach the foundation wall, which means a clear path at least eight to ten feet wide from the street or staging area to the work zone. Fenced yards, narrow side yards, overhead power lines, and neighboring structures can all limit or prevent excavator access. Some walls may require hand-digging in tight areas, which multiplies labor time and cost by a factor of three to five compared to machine excavation.

Excavation disrupts everything within the work zone. Driveways, patios, decks, walkways, porches, and landscaping that fall within four to eight feet of the foundation wall must be removed before digging begins. Underground utilities — gas lines, water mains, sewer laterals, electrical conduits, and irrigation systems — must be located and protected or temporarily relocated. In established Kansas City and Des Moines neighborhoods, the density of buried utilities near the foundation can add significant coordination time and cost.

Cost is significantly higher than interior waterproofing. A full-perimeter exterior waterproofing installation on a typical Kansas City or Des Moines home costs three to five times more than a comparable interior drain tile and sump pump system. The cost difference reflects the excavation equipment, labor hours, membrane materials, drainage aggregate, backfill, and landscape restoration required. For a detailed comparison of costs across methods, see our basement waterproofing cost guide.

Shared walls and structures built over the foundation cannot be excavated. Townhomes, duplexes, and homes with additions built directly over the foundation wall eliminate exterior access on those sides. Garages attached at the foundation, sunrooms on concrete piers tied to the basement wall, and adjacent buildings within a few feet of the property line all create zones where excavation is physically impossible. These walls must be addressed from the interior.

Seasonal constraints limit the installation window. Frozen ground in Kansas City and Des Moines prevents excavation from late December through February in most years. Liquid-applied membranes require above-freezing temperatures to cure properly. Sustained rain during installation can flood the open trench and delay membrane application. The practical installation season runs from April through November, with the best conditions from May through October. For a framework to decide between exterior and interior waterproofing based on your specific conditions, see our interior vs. exterior waterproofing comparison.
