French Drain Systems: How Gravel-and-Pipe Drainage Relieves Basement Water Pressure

What Is a French Drain and How Does It Work?

A French drain intercepts groundwater before it builds pressure against your foundation. The system consists of a trench excavated to the appropriate depth, lined with geotextile filter fabric, filled with clean drainage gravel, and fitted with a perforated pipe at the bottom. Water in the surrounding soil migrates into the gravel bed because the aggregate void ratio of the stone is far higher than the surrounding soil — water flows through the path of least resistance. Once inside the gravel, water enters the perforations in the pipe and flows by gravity to a discharge point.

The gravel bed is the working heart of the system, not just a filler. The drainage gravel gradation — typically clean, washed three-quarter-inch stone — creates a continuous network of voids that water can move through freely. Soil surrounding the trench has tiny pore spaces that resist water flow. The gravel has large, interconnected voids that welcome it. This difference in permeability is what draws water out of the soil and into the drain. Without adequate gravel volume and proper gradation, the system cannot maintain the flow rates needed to relieve hydrostatic pressure effectively.

The discharge point determines where the collected water goes. On sloped lots, the French drain terminates at a daylight outlet — the pipe emerges from the hillside and water exits onto the surface downhill from the home. On flat lots where a daylight outlet is not possible, the pipe routes to a sump pit inside the basement or to an exterior collection basin, where a pump handles discharge. The key requirement is that water must leave the system continuously — a French drain with a blocked or submerged outlet stops functioning and can actually increase pressure by concentrating water in the trench.

Interior vs. Exterior French Drains

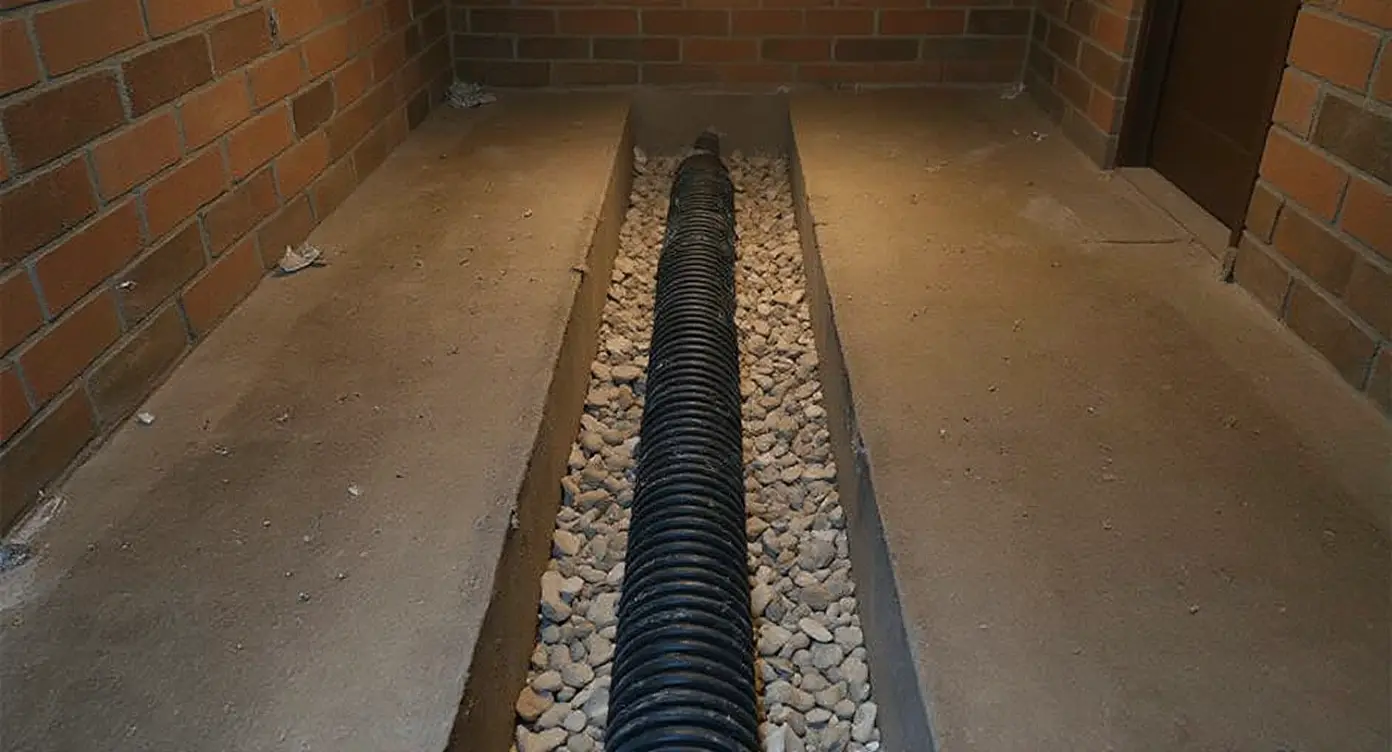

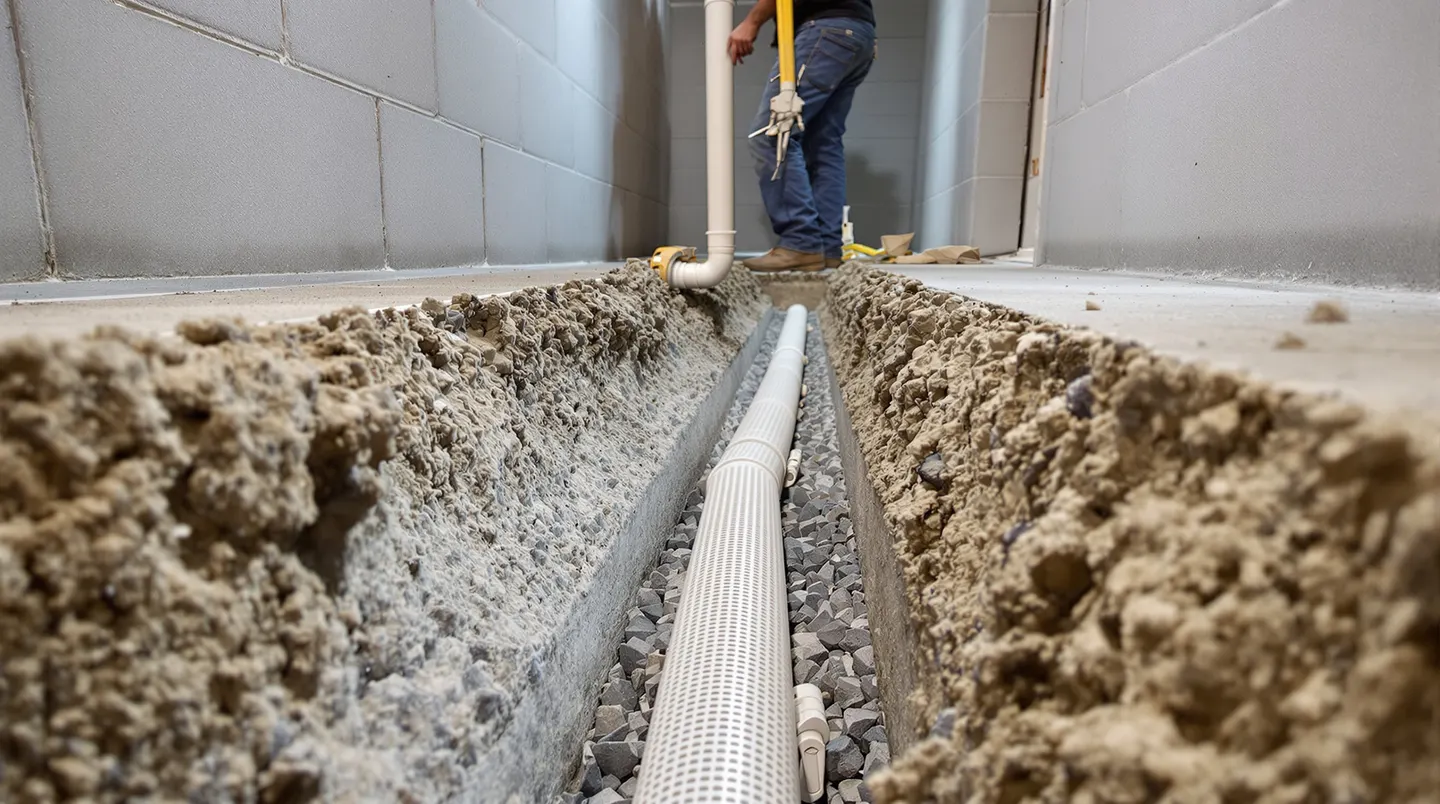

An interior French drain is installed inside the basement along the footing and functions like interior drain tile. The basement slab is cut and a narrow trench is excavated along the perimeter wall at the footing level. Perforated pipe is laid in the trench, surrounded by clean gravel, and the slab is repoured over the top. Water that enters through the cove joint, block wall cores, or beneath the slab flows into the gravel bed and pipe, then drains to a sump pit for pump discharge. This is the most common French drain configuration in Kansas City and Des Moines basements.

An exterior French drain is installed in a trench outside the foundation perimeter. Excavation extends to the footing depth — typically 7 to 8 feet for a standard basement — and the perforated pipe is placed alongside or slightly below the footing. The trench is backfilled with drainage gravel rather than the original clay or till soil. This system intercepts groundwater before it reaches the wall, reducing both the hydrostatic and lateral water pressure the foundation must resist. Exterior French drains provide the most direct pressure relief but require significant excavation.

The key differences come down to installation disruption and where water is intercepted. Interior French drains are less disruptive — no excavation outside, no landscaping damage, and installation typically takes 2 to 4 days. However, they manage water after it has already reached the foundation. Exterior French drains intercept water in the soil column before it contacts the wall, but they require heavy equipment, full-depth trenching, and restoration of everything at grade level. For most existing homes, an interior waterproofing system with an interior French drain is the practical choice. Exterior French drains are most cost-effective during new construction or when the foundation is already being excavated for other work.

How Is a French Drain Installed?

The materials for a French drain are straightforward: perforated pipe, filter fabric, and drainage gravel. The perforated corrugated pipe is typically 4 inches in diameter with two rows of perforations that face downward when installed. A filter fabric sock — a non-woven geotextile sleeve that wraps the pipe — prevents soil particles from entering the perforations and clogging the system. The drainage gravel gradation should be clean, washed three-quarter-inch crushed stone with minimal fines. Stone with excessive dust or sand fills the void spaces and reduces the system's water-carrying capacity.

The trench must be excavated at a consistent grade slope of at least 1% toward the outlet. A 1% slope means the trench drops 1 inch for every 8 feet of horizontal run. This slope ensures gravity moves water continuously through the pipe to the discharge point. A trench with flat spots or reverse grades creates standing water in the pipe — areas where sediment accumulates and eventually blocks flow. For a 40-foot run, the total elevation change from high end to low end should be at least 5 inches.

The installation sequence follows a specific layering order. First, the trench is excavated to the target depth and width — typically 12 to 18 inches wide. Geotextile filter fabric is draped into the trench with enough excess on each side to fold over the top of the gravel. A 2-inch base layer of gravel is placed in the bottom of the trench. The perforated pipe is set on the gravel base with perforations facing down. Additional gravel fills around and over the pipe to within a few inches of grade. The excess filter fabric is folded over the top of the gravel to create a complete geotextile separation layer that prevents soil from migrating into the drainage aggregate.

The collection basin at the terminus receives all water from the French drain run. For exterior systems with a daylight outlet, the pipe simply exits the hillside and water flows onto the ground surface. For systems on flat lots, a collection basin — a buried plastic chamber with a solid bottom and inlet ports — accumulates water and connects to a pump or secondary drain line. The basin must be sized to handle peak inflow without backing water up into the French drain pipe. A backed-up outlet reduces the system to a water storage trench rather than a drainage system.

What Makes a French Drain Effective Long-Term?

The aggregate void ratio determines the system's water flow capacity. Clean three-quarter-inch crushed stone has a void ratio of approximately 0.40 to 0.45 — meaning 40 to 45 percent of the gravel bed's volume is open space that water can occupy and flow through. As soil particles infiltrate the gravel over time, those voids fill and the effective flow capacity decreases. A French drain that moves water freely in year one may be significantly restricted by year 15 if the geotextile separation layer was poorly installed or omitted. Maintaining the aggregate void ratio is the single most important factor in long-term French drain performance.

The filter fabric sock prevents soil infiltration that clogs the pipe. Fine clay and silt particles in Kansas City's Wymore-Ladoga soils and Des Moines' glacial till are small enough to pass through the perforations in corrugated pipe. Once inside the pipe, they settle and accumulate — especially in low spots where water velocity drops. A non-woven geotextile filter fabric sock wrapped around the pipe blocks these particles while allowing water to pass through freely. The fabric's pore size must be small enough to stop the finest soil particles present in your specific soil type but large enough to avoid blinding — a condition where the fabric itself becomes clogged.

Proper trench grade slope prevents standing water inside the pipe. Water that sits in the pipe rather than flowing to the outlet deposits sediment and provides a breeding ground for iron bacteria — an orange, slimy biofilm that can coat the pipe interior and reduce flow. A consistent 1% minimum slope throughout the entire run ensures water moves continuously and does not stagnate. Checking grade with a laser level during installation — not estimating by eye — is the only reliable way to confirm the slope is adequate. Understanding the science of water pressure explains why even small amounts of standing water in the system can reduce its effectiveness against hydrostatic loading.

The choice between a daylight outlet and a sump connection affects maintenance requirements. A daylight outlet is a passive system — water exits by gravity with no mechanical components to fail. The outlet must be kept clear of debris and vegetation, but no pump or power is required. A sump pit connection adds a mechanical dependency — the pump must function for the system to discharge water. Daylight outlets are preferred when the lot slope allows them. Sump connections are necessary on flat lots and for all interior French drain installations.

When Are French Drains the Right Solution?

French drains are the right solution when the problem is water volume in the soil around or beneath the foundation. If surface water collects in the yard near the foundation, a shallow exterior French drain intercepts it before it saturates the backfill zone. If subsurface water from a high water table pushes upward through the slab and cove joint, an interior French drain at the footing level relieves the hydrostatic pressure by giving that water a controlled exit path. The common thread is redirecting water that is already in the ground — French drains do not stop rain from falling, but they prevent groundwater from accumulating where it causes damage.

Yard drainage problems that direct water toward the foundation are a primary use case. Homes where the yard slopes toward the house, where neighboring lots drain onto the property, or where downspouts discharge too close to the foundation accumulate water in the soil immediately adjacent to the basement walls. A French drain installed between the water source and the foundation intercepts this flow and redirects it to a discharge point away from the home. This reduces the volume of water that reaches the foundation and lowers the hydrostatic pressure the walls and slab must resist.

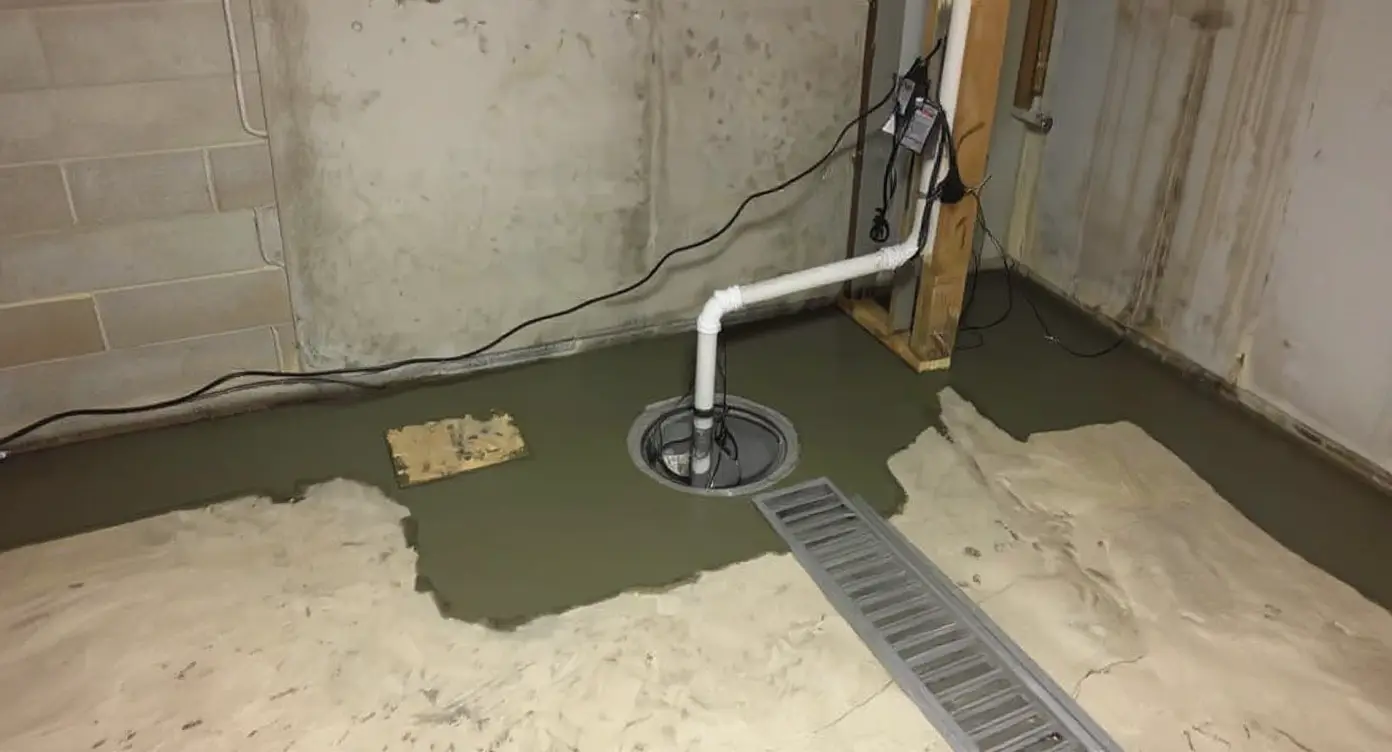

French drains work best when paired with a complete interior waterproofing system. A French drain manages water in the soil, but it does not seal the wall or provide vapor control inside the basement. For comprehensive basement water protection, an interior French drain at the footing connects to a sump pump system, and a vapor barrier covers the wall face to manage moisture vapor. The French drain handles liquid water volume. The vapor barrier handles airborne moisture. The sump pump handles discharge. Together, these components form the complete interior waterproofing system described in our homeowner guide. For current pricing on French drain installation in Kansas City and Des Moines, see our cost guide.
