Helical Tiebacks: How Screw-Shaft Anchors Stabilize Severely Bowing Walls

How Do Helical Tiebacks Work?

A helical tieback is a steel shaft with one or more helix plates welded along its length, designed to be screwed into soil like a large screw. The helical shaft pitch — the angle and spacing of the helix plates — determines how the shaft advances through the soil and how much resistance each plate generates. As the shaft rotates and advances, each helix plate cuts into undisturbed soil beyond the zone that is actively pushing against the wall. This active zone penetration is the key engineering requirement: the anchor must reach soil that is not contributing to the lateral pressure problem.

The screw anchor helix diameter — typically 8 to 14 inches — provides bearing area in the soil. Larger helix plates generate more resistance per plate but require more installation torque to advance. Multiple helix plates on a single shaft multiply the total holding capacity. The relationship between installation torque and holding capacity — the torque-to-capacity ratio — is the primary quality control metric during installation. Higher torque readings indicate the shaft has reached denser, more competent soil.

Extension shaft coupling allows the helical shaft to reach stable soil at whatever depth is required. The lead section with the helix plates is advanced first, and extension shafts are coupled to the trailing end as the shaft advances deeper. Each coupling is a bolted or pinned mechanical connection that transfers both the rotational force during installation and the tensile force during service. The shaft continues to advance until installation torque monitoring confirms that the helix plates have reached soil with adequate bearing capacity.

On the interior, a steel bearing plate is placed against the wall face and connected to the tieback rod. The bearing plate tension is applied by tightening a nut on the rod end, pulling the wall toward the anchored soil and compressing the bearing plate against the wall surface. This tension is what stabilizes the wall — and what distinguishes tiebacks from passive bracing methods like I-beams. The wall is actively held in place by a tensile connection to stable ground, not merely braced by a rigid member.

How Are Helical Tiebacks Installed?

Installation begins by boring a hole through the foundation wall at the specified tieback location. A core drill creates a clean penetration through the concrete or block wall, sized to accept the wall penetration sleeve. The sleeve is a steel tube set into the bore hole that protects the wall opening, provides a bearing surface for the tieback rod, and prevents the concrete from being damaged by rod movement during tensioning. Proper sleeve installation is critical — a poorly supported penetration point can crack the surrounding wall material under load.

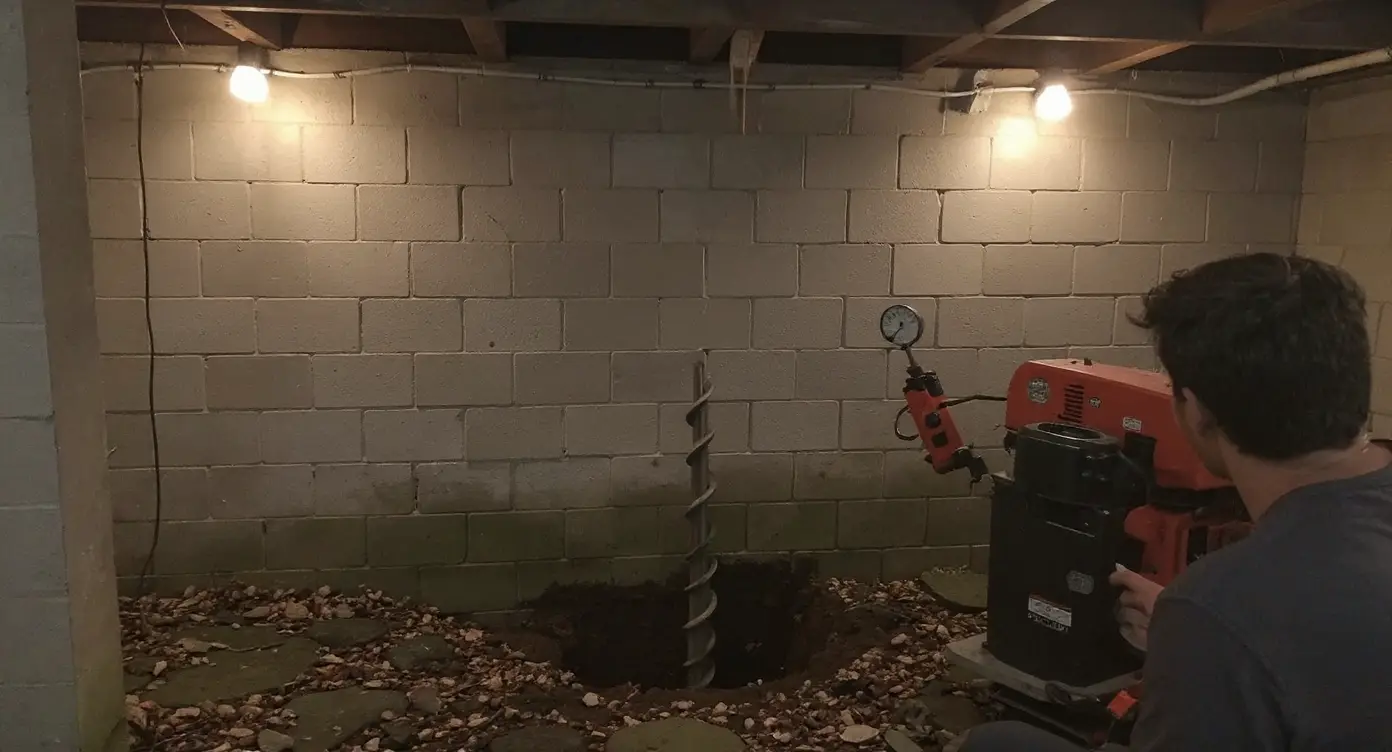

The helical shaft is advanced through the sleeve and into the soil using rotary hydraulic equipment. The drive head grips the shaft and applies controlled rotational torque while advancing the helix plates into the ground. Installation torque monitoring is continuous — the operator watches torque readings in real time to track the shaft's progress through different soil layers. When the torque reaches the engineered specification, the helix plates have engaged soil with sufficient bearing capacity to resist the design load.

The torque-to-capacity ratio is the engineering relationship that converts the measured installation torque into an estimated holding capacity. This ratio varies by soil type, helix configuration, and shaft diameter, but it provides a reliable field verification that each tieback will perform as designed. Every tieback is individually verified — there is no assumption that reaching a certain depth guarantees adequate capacity. The torque data is recorded and becomes part of the permanent installation record.

After the shaft reaches the target torque, the bearing plate is placed against the interior wall face and the rod is tensioned to specification. A steel plate — typically 12 to 16 inches square — distributes the tension force across a broad area of the wall surface. The nut is tightened to a calibrated torque that establishes the initial holding force without overloading the wall material. Each tieback is independently anchored and independently tensioned, so a failure at one location does not affect adjacent tiebacks.

When Are Helical Tiebacks Appropriate?

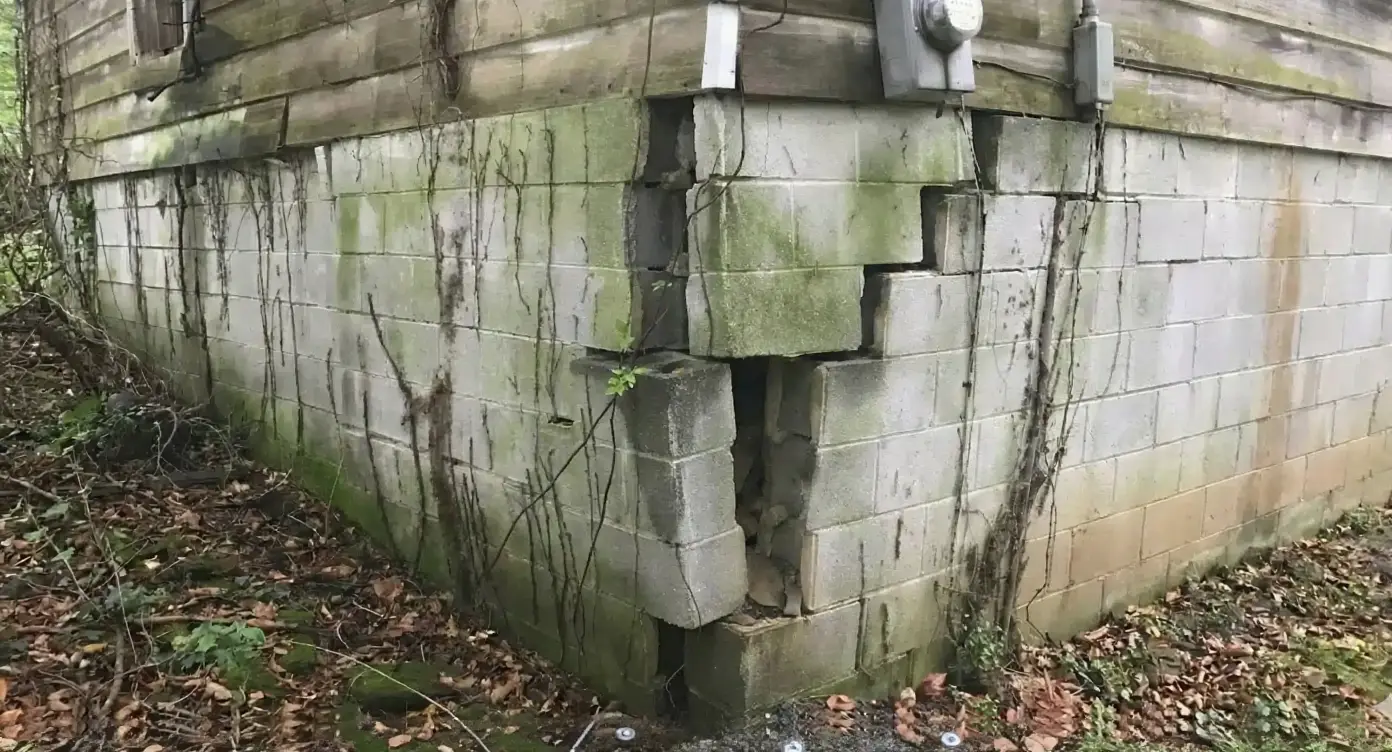

Helical tiebacks are appropriate for Stage 3 to Stage 4 bowing — walls that have deflected two to four or more inches inward. At this severity, the wall has moved well past the range where carbon fiber straps (limited to walls under two inches of deflection) or standard I-beams (which arrest but do not correct) are adequate solutions. Tiebacks provide the highest stabilization force of any non-replacement method and can be tensioned to gradually recover deflection over time. For severity staging and how to assess your wall's condition, see our bowing wall diagnosis page.

Tiebacks are the right choice when wall anchors cannot reach stable soil from the exterior. Standard wall anchors use earth plates buried in the yard, typically 10 to 15 feet from the foundation. If the active pressure zone extends farther than the available yard space, or if the near-surface soil is too weak to resist anchor loads, a wall anchor system cannot generate adequate holding force. Helical tiebacks solve this by screwing directly into competent soil at depth — they are not limited by yard dimensions or surface soil conditions.

When wall straightening is the goal for advanced deflection, tiebacks provide the mechanism to apply sustained outward force. After the initial installation and tensioning, the bearing plate can be incrementally re-tensioned during subsequent service visits — typically once per year, timed to coincide with wet-season soil softening when the wall is most responsive to repositioning. This progressive straightening is the same principle used with wall anchors, but tiebacks can deliver it at higher force levels for more severely displaced walls.

Helical tiebacks work on both block and poured concrete walls, though the bearing plate configuration may differ. Block walls require larger bearing plates to distribute force across multiple courses and avoid overloading individual blocks. Poured concrete walls can accept higher point loads per plate. In both cases, the wall material must retain enough structural integrity to transfer the tieback's holding force — if the wall is shattered or disintegrating, it cannot serve as the connection between the tieback and the structure, and wall replacement may be necessary.

How Do Helical Tiebacks Compare to Other Stabilization Methods?

Each basement wall stabilization method addresses a different range of deflection severity and requires different site conditions. The table below summarizes the key differences. For detailed information on each method, follow the links to the individual method pages.

Helical tiebacks occupy the most aggressive position in this range — they handle the most severe deflection and deliver the highest holding force per anchor point. Carbon fiber straps are the least invasive but are limited to early-stage bowing. Wall anchors provide the best balance of straightening capability and cost for moderate bowing but require yard space for the exterior earth plates. I-beams are the interior-only option for moderate bowing but cannot straighten.

The choice between methods depends on three factors: how far the wall has moved, whether straightening is needed, and what site access is available. A professional evaluation determines which method — or combination of methods — matches the specific wall condition. For a full comparison of all stabilization approaches and their applications, see our complete basement protection guide.

What Are the Limitations of Helical Tiebacks?

Helical tiebacks are the most expensive non-replacement stabilization method. The cost reflects the specialized rotary drilling equipment required, the engineered steel helical shafts and extension shaft couplings, and the labor intensity of boring through the foundation wall at each tieback location. For walls where carbon fiber or I-beams would provide adequate stabilization, tiebacks represent an unnecessary expense. They are justified by severity — not preference. For current pricing, see our cost comparison page.

Installation requires rotary drilling equipment positioned at the exterior wall face or operating through the interior bore holes. The equipment generates significant vibration and noise during helical shaft advancement. In basements with finished walls, drywall, or sensitive fixtures near the installation points, vibration can cause cosmetic damage. The bore holes through the wall also require proper sealing after installation to prevent water infiltration at the wall penetration sleeve locations.

Each tieback is a single point load on the wall — the bearing plate transfers force at one location rather than distributing it continuously. Multiple tiebacks are needed to stabilize a full wall, typically spaced five to six feet on center. Between anchor points, the wall relies on its own material strength to span the gap. If the wall material is severely deteriorated — crumbling block, disintegrating mortar joints, or fractured concrete — the wall cannot transfer the tieback forces effectively, and the method may not be viable.

The bearing plates are visible on the interior wall face and project several inches into the basement space. Each plate is a steel square roughly 12 to 16 inches across, bolted to the protruding rod end. They can be framed around in a finished basement, but the rod nuts must remain accessible for future re-tensioning. This is a cosmetic and space-planning consideration rather than a structural limitation, but it affects how the basement can be used after installation.
