Interior Basement Waterproofing: How Drain Tile Systems Manage Water Pressure from Inside

What Is Interior Waterproofing and How Does It Work?

Interior waterproofing is classified as negative-side waterproofing because it operates on the interior face of the foundation — the side opposite from the water source. Positive-side (exterior) waterproofing applies a barrier to the outside of the wall to prevent water from entering the concrete. Negative-side systems accept that water will reach and pass through the wall, and instead provide a controlled path for that water to be collected and removed before it enters the living space.

The core mechanism is a perimeter drain channel installed at the footing-slab interface. A strip of the basement floor is removed along the affected walls, and a perforated pipe — the interior weeping tile — is placed in a gravel bed at footing level. This pipe collects water that rises through the cove joint, water that drains down the wall face, and water that migrates laterally through the sub-slab gravel bed. All collected water flows by gravity through the pitched pipe to a sump basin at the lowest point of the system.

A sump pump in the basin activates automatically when water reaches a set level and discharges it through a sealed line to grade. The discharge line carries water away from the foundation — typically to a yard discharge point at least ten feet from the house or to a storm drain connection where local codes permit. Battery backup pumps provide protection during power outages, which are common during the heavy storms that generate the most basement water.

What Are the Components of an Interior Waterproofing System?

A complete interior waterproofing system has four primary components, each serving a distinct function in the water management chain. Omitting any one of these components reduces the system's effectiveness. They work as an integrated assembly — collection, transport, discharge, and humidity control.

Perimeter Drain Channel (Drain Tile)

The perimeter drain channel is the footing-level collection system that intercepts water before it spreads across the basement floor. It consists of a perforated pipe — typically 3-inch or 4-inch diameter PVC or corrugated polyethylene — bedded in washed drainage gravel inside a trench cut into the basement slab along the wall perimeter. The pipe is installed at a drain tile pitch grade of approximately 1/8 inch per linear foot, sloping consistently toward the sump basin.

The gravel bed surrounding the pipe serves as a filter and flow equalizer. It prevents soil fines from clogging the pipe perforations while providing a porous reservoir that collects water from a wider area than the pipe alone. Washed #57 or #8 stone is standard. The gravel fill typically extends from the footing top to within two inches of the finished floor surface, where a concrete cap is poured to seal the channel.

Sump Basin Liner and Pump

The sump basin liner is the collection point where all drain tile lines converge. A standard residential sump basin is 18 to 24 inches in diameter and 24 to 30 inches deep, installed in a pit excavated below the slab at the lowest point of the drain tile system. The basin has inlet ports where the drain tile pipes enter and a sealed lid to prevent soil gas and moisture from escaping into the basement.

The primary sump pump is a submersible unit that sits inside the basin and activates via a float switch. When water in the basin reaches a preset level, the float rises, the pump engages, and water is pushed through a discharge pipe to the exterior. Pump capacity is sized to the expected water volume — most residential systems use 1/3 to 1/2 horsepower pumps capable of moving 2,000 to 3,000 gallons per hour. For detailed pump sizing and backup configurations, see our sump pump systems guide.

Vapor Barrier Dimple Mat and Drain Board Membrane

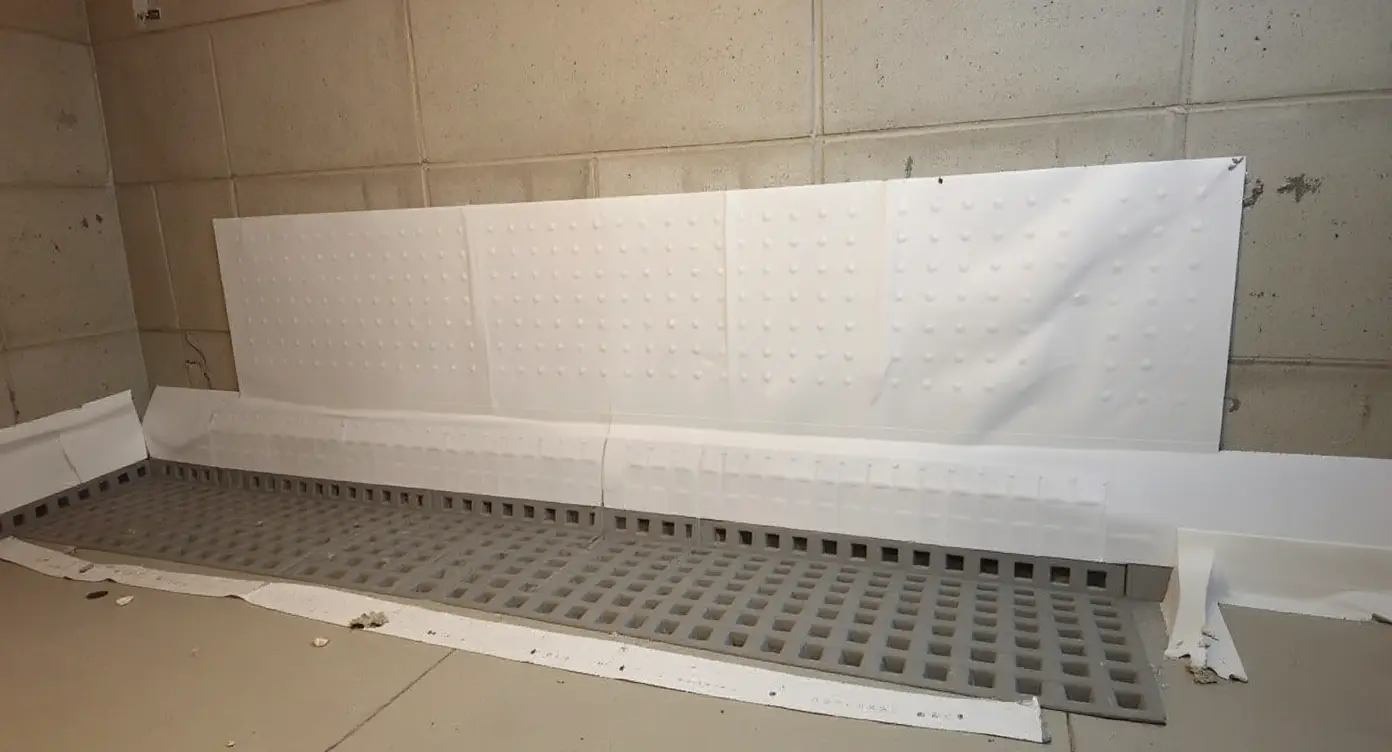

The vapor barrier dimple mat is a textured polyethylene sheet installed against the interior face of the basement wall. The dimple pattern creates an air gap between the wall surface and the barrier, allowing water that migrates through the wall to travel downward behind the membrane by gravity. At the base of the wall, this water drains into the perimeter drain channel rather than seeping into the living space.

A drain board membrane serves the same function with a different construction. Drain boards use a rigid or semi-rigid panel with drainage channels molded into the face, bonded to a filter fabric. Both approaches — dimple mat and drain board membrane — prevent wall moisture from reaching drywall, insulation, or stored items placed against the wall. The choice between them depends on wall condition and the installer's system design.

Dehumidification

A basement dehumidifier manages the residual moisture that interior waterproofing does not eliminate. Even with a functioning drain tile system and vapor barrier, concrete walls and floors continue to transmit water vapor through the slab. A dehumidifier rated for the basement's square footage — typically 50 to 70 pints per day for a standard basement — maintains relative humidity below 50%, the threshold above which mold growth accelerates. Gravity-drain models that empty directly into the sump basin require no manual emptying.

How Is Interior Waterproofing Installed?

Installation follows a consistent sequence that most experienced crews complete in one to three days depending on the perimeter length being treated. The process is disruptive to the immediate work area but does not require exterior excavation, heavy equipment in the yard, or removal of landscaping. All work occurs inside the basement.

The first step is marking the perimeter layout and protecting the work area. The installer marks a line 12 to 18 inches from the wall along each affected side, identifying the strip of slab to be removed. Items stored along the perimeter are moved to the center of the basement. Plastic sheeting isolates the work zone from the rest of the space to contain concrete dust.

The slab is cut along the marked line with a concrete saw and the strip is broken out with a demolition hammer. The resulting trench exposes the top of the footing and the wall-footing junction. Excavation continues to the base of the footing — typically 8 to 12 inches below the slab surface — to reach the elevation where water collects. Any standing water in the trench confirms the presence of sub-slab water pressure at that location.

Drain tile is placed in the trench at the correct pitch grade, sloping toward the sump pit location. The pipe sits on a bed of washed gravel and is surrounded on all sides by additional gravel. The drain tile pitch grade — typically 1/8 inch per foot — ensures water flows by gravity to the sump basin without pooling in low spots. Pipe joints are connected but not glued, allowing water to enter at every joint as well as through the pipe perforations.

The sump pit is excavated at the system's low point, and the sump basin liner is set in place. Drain tile pipes enter the basin through pre-cut ports. The basin is bedded in gravel to allow water to enter from the surrounding soil as well as through the pipe connections. The pump is installed, the discharge line is routed through the rim joist or wall to the exterior, and the system is tested by filling the basin with water to verify pump activation and discharge flow.

The trench is backfilled with gravel to within two inches of the slab surface, and new concrete is poured to cap the channel. The finished floor is flush with the original slab. The vapor barrier is attached to the wall above the drain channel using mechanical fasteners and sealed at the top edge. The barrier's bottom edge terminates inside the drain channel so wall water drains directly into the gravel bed.

When Is Interior Waterproofing the Right Choice?

Interior waterproofing is the right choice for the majority of residential basement water problems in Kansas City and Des Moines. It is most effective when water enters at the cove joint — the wall-floor junction — which is the single most common entry point in both markets. For a detailed explanation of why the cove joint leaks and how to confirm it as the source, see our cove joint water entry diagnosis page.

Block wall basements with water migrating through the hollow cores are strong candidates for interior systems. Water enters the block wall through mortar joints, cracks, or porous block faces high on the wall, travels downward through the hollow cores, and exits at the base where the wall meets the footing. An interior vapor barrier dimple mat captures this water on the wall face and directs it into the perimeter drain channel. Exterior waterproofing would address the entry point, but interior systems manage the exit point at lower cost.

In Des Moines, where high water tables in glacial till deposits are common, interior drain tile is the standard approach. The water table in many Des Moines neighborhoods rises to within one to three feet of grade during spring, creating sustained hydrostatic pressure beneath the slab. Interior drain tile relieves this pressure continuously by providing a low-resistance path for sub-slab water to reach the sump pit rather than forcing its way through the cove joint.

In Kansas City, clay-driven cove joint seepage responds well to interior drainage. Wymore and Ladoga clay soils hold water against the foundation for days after rain, creating extended pressure cycles at the footing level. Interior drain tile intercepts this water at the footing-level collection point and removes it mechanically, regardless of how long the clay retains moisture in the backfill zone.

What Are the Limitations of Interior Waterproofing?

Interior waterproofing does not stop water from entering the wall material itself. Concrete and block continue to absorb moisture from the saturated soil outside. The wall remains wet behind the vapor barrier. Over decades, this ongoing moisture exposure can contribute to deterioration of block mortar joints and concrete surface spalling, though the rate is slow in most residential foundations. If wall material preservation is the primary goal, exterior waterproofing — which prevents water contact with the wall — is the better approach.

Interior systems do not address wall bowing, tilting, or structural displacement. If a basement wall is bowing inward due to lateral earth pressure, the structural problem must be addressed separately with wall reinforcement — carbon fiber straps, steel I-beams, or wall anchors — before or alongside waterproofing. Water management and structural stabilization are separate engineering problems. For a comparison of approaches when both issues are present, see our exterior waterproofing methods page.

If water volume exceeds the system's capacity, interior drainage may not keep pace. This can occur in basements with unusually high water tables, natural springs beneath the slab, or severe surface drainage problems that channel large volumes of water toward the foundation. When the sump pump runs continuously or the drain tile cannot transport water fast enough, an exterior drain tile system or exterior waterproofing membrane may be needed to reduce the total volume reaching the interior system.

Interior waterproofing does not fix surface drainage problems. If gutters are missing, downspouts discharge at the foundation, or the yard slopes toward the house, those conditions will continue to overload the sub-slab drainage system. Correcting surface drainage — grading, gutter extensions, downspout rerouting — is a necessary complement to interior waterproofing, not a substitute for it. For a comprehensive view of how all these systems interact, see our complete guide to basement water management.
