Steel I-Beams: How Vertical Bracing Stabilizes Bowing Basement Walls

How Do Steel I-Beams Stabilize Basement Walls?

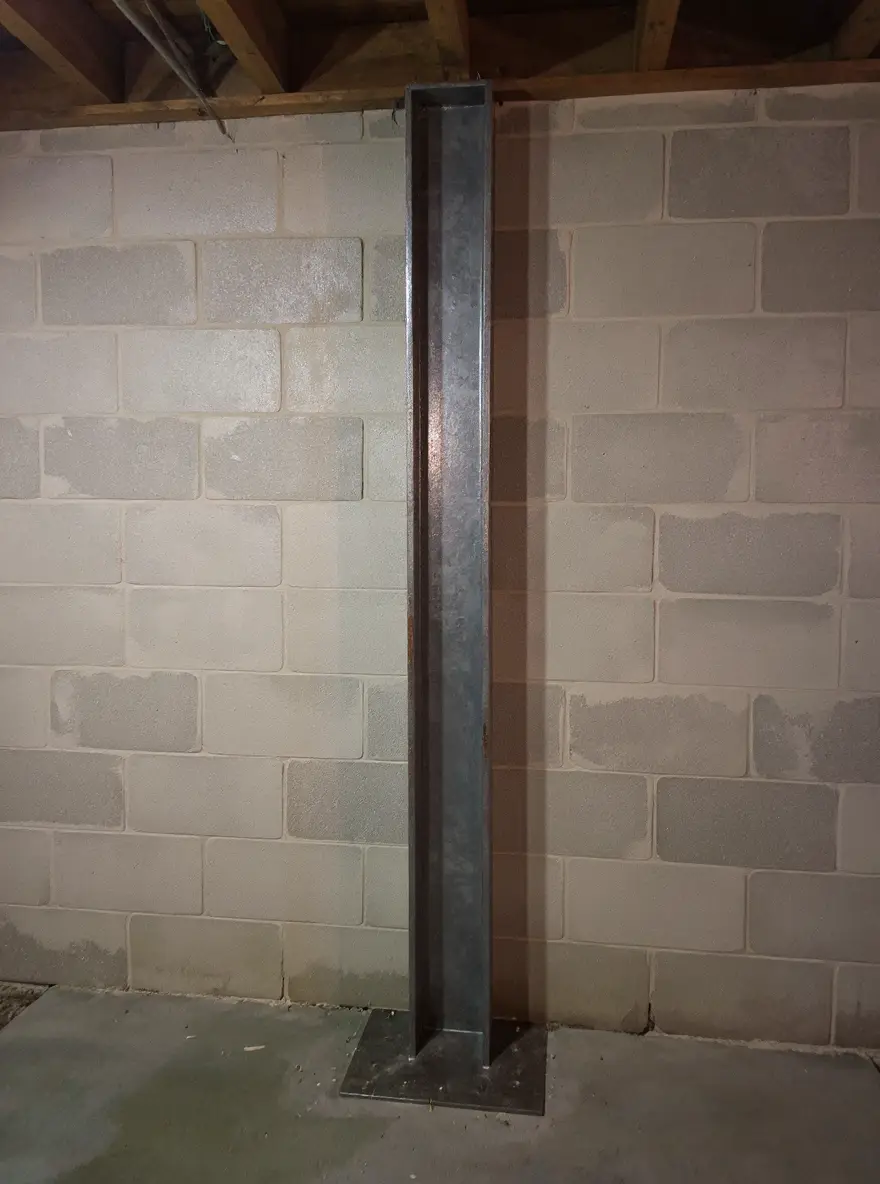

The PowerBrace system uses a steel I-beam positioned vertically against the bowing wall to create a rigid brace between the basement floor slab and the floor joist structure above. The beam's wide flange sits flat against the wall face, distributing contact pressure across a broad area rather than concentrating force at a single point. This vertical beam flange alignment is critical — the flange must bear fully against the wall surface to provide uniform resistance along the beam's height.

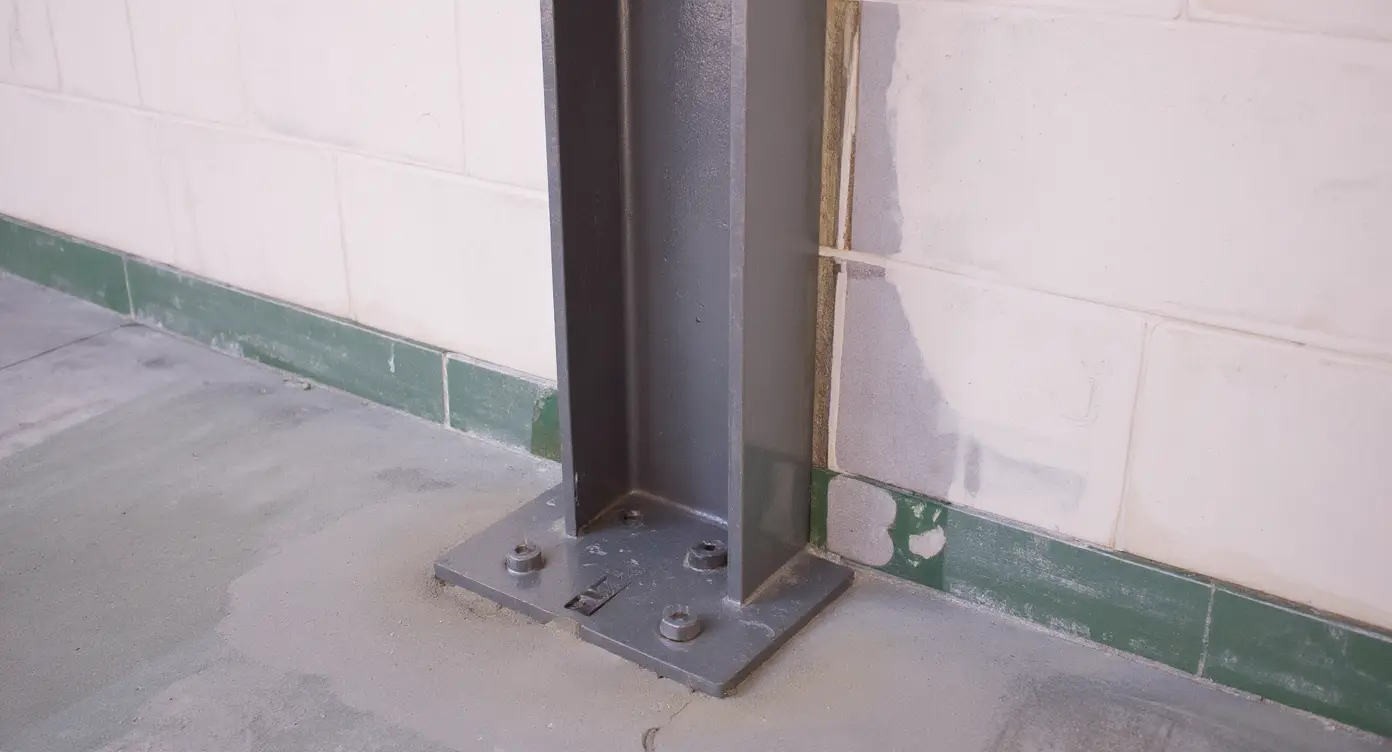

At the base, a steel base plate is secured to the concrete floor slab with anchor bolts. The base plate anchor bolt assembly creates a fixed connection that prevents the beam's bottom from sliding or rotating under load. This base connection transfers the wall's lateral force downward into the slab, which in turn bears on the footing and the soil beneath it. The base plate is typically 3/8-inch to 1/2-inch steel, sized to distribute the reaction force across enough slab area to avoid cracking the concrete.

At the top, an adjustable top bracket connects the beam to the floor joists or the sill plate at the beam-to-sill contact point. This bracket transfers the upper portion of the wall's lateral load into the home's first-floor framing. The floor joist bearing connection is the critical load path — the joists carry the horizontal force to the opposite wall of the house, which resists it. Without this top connection, the beam would simply pivot at the base and provide minimal resistance.

The lateral brace force transfer works because the beam converts a distributed lateral soil load into two concentrated reaction forces — one at the floor, one at the ceiling. The home's structure above and the slab below act as the anchoring points. This is the same engineering principle used in temporary shoring during construction: a vertical member braced at top and bottom resists horizontal loads applied along its length. Each beam functions as an independent movement arrest mechanism at its installation point.

How Are Steel I-Beams Installed?

Installation begins by identifying the locations of maximum deflection along the bowing wall. The installer measures the wall's inward displacement at multiple points to determine where beams are needed and at what spacing. Beams are positioned at the points of greatest bowing first, then spaced at regular intervals — typically four feet on center — to cover the full affected length. The wall surface at each beam location is cleaned to ensure full flange contact.

Each beam is set vertically against the wall with the flange bearing flat against the wall face. The base plate is positioned on the floor slab and holes are drilled through the concrete for the anchor bolts. Wedge anchors or epoxy anchors are driven into the slab and tightened to secure the base plate. The beam is then plumbed vertically and the adjustable top bracket is connected to the floor joists above using lag bolts or through-bolts.

Once the beam is secured at top and bottom, the system is tensioned to establish firm contact between the beam flange and the wall. The adjustable top bracket allows the installer to snug the beam against the wall surface, eliminating any gap between the flange and the concrete or block face. This initial tension does not push the wall outward — it simply ensures the beam is engaged and will resist any further inward movement immediately rather than after additional deflection closes a gap.

No excavation is required at any point in the process — the entire installation occurs from inside the basement. There is no disruption to landscaping, driveways, patios, or neighboring property. A typical installation of six to eight beams is completed in a single day. The movement arrest mechanism is active immediately after tensioning — there is no curing time, no waiting for soil conditions to change, and no seasonal restrictions on installation.

When Are Steel I-Beams the Right Choice?

Steel I-beams are most appropriate for Stage 2 to Stage 3 bowing — walls that have deflected one to three inches inward and need stabilization to prevent further movement. At this stage, the wall has moved enough that carbon fiber straps alone may not provide sufficient resistance, but the deflection is not so severe that wall replacement is necessary. I-beams bridge this middle range by providing substantially more bracing force than carbon fiber while remaining an interior-only installation. For severity staging details, see our bowing basement wall diagnosis page.

The strongest case for I-beams is when exterior access is impossible or impractical. Wall anchors and helical tiebacks both require access outside the foundation — anchors need yard space for earth plates, and tiebacks need rotary drilling equipment at the exterior wall. When a shared property line, adjacent building, driveway, pool, porch, or buried utility prevents exterior work, I-beams become the default stabilization method because they work entirely from inside.

Both block walls and poured concrete walls respond to I-beam bracing. Block walls with deteriorating mortar joints benefit from the beam's distributed contact along the flange — the beam supports multiple block courses simultaneously rather than loading a single point. Poured concrete walls with horizontal cracks and inward rotation are similarly stabilized because the beam resists the rotation at every point along its height.

I-beams are also appropriate when minimal disruption is the priority. No excavation means no yard restoration, no landscape replacement, and no neighbor coordination. The installation is fast — typically one day — and the basement is immediately usable afterward. For homeowners evaluating their full range of options, see our complete basement protection guide.

What Are the Limitations of Steel I-Beams?

Steel I-beams do not straighten a bowing wall — they arrest movement at the current deflection and prevent further displacement. If the wall has bowed two inches inward, it will remain two inches inward after beam installation. This is the fundamental difference between I-beams and methods like wall anchors, which can be progressively tightened over multiple seasons to gradually pull the wall back toward plumb. For homeowners who need both stabilization and straightening, wall anchors or helical tiebacks are the appropriate comparison.

The beams are visible in the basement and affect how the space can be finished or used. Each beam projects approximately three to four inches from the wall face and runs from floor to ceiling. In an unfinished basement used for storage or utilities, this is a minor issue. In a basement intended for finished living space, the beams dictate framing layout and reduce the usable depth of the room along the braced wall. Framing can enclose the beams, but the adjustable top bracket must remain accessible for future inspection and adjustment.

Each beam covers approximately four feet of wall length, meaning multiple beams are required for long walls. A 28-foot wall may need seven beams. Each beam is an independent bracing point — there is no continuous connection between beams along the wall face. This point-load distribution is effective for preventing further bowing but does not provide the continuous reinforcement that carbon fiber straps or exterior wall anchors deliver across the wall surface.

I-beams reduce usable wall area slightly at each installation point. The flange width and the base plate footprint create a zone along the wall that cannot be used for shelving, workbenches, or wall-mounted items. For basement layouts where every inch of wall space matters, this trade-off should be evaluated before installation. For current pricing information on I-beam systems and alternative stabilization methods, see our cost comparison page.
