Sump Pump Systems: Sizing, Battery Backup, and Discharge for Midwest Basements

How Does a Sump Pump System Work?

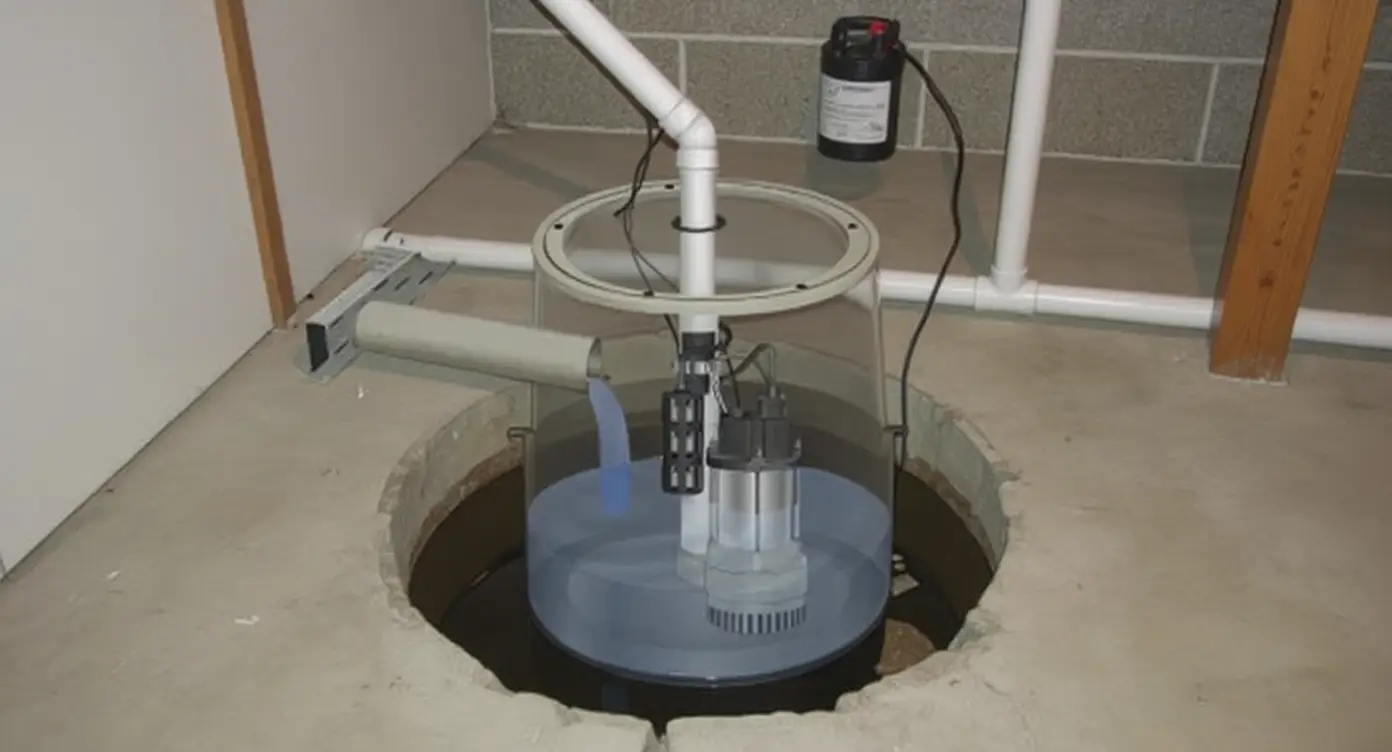

A sump pump system collects groundwater from the perimeter drain tile and removes it from the basement. The drain tile — perforated pipe installed along the interior or exterior footing — intercepts water that enters at the cove joint, through block wall cores, or from beneath the slab. That water flows by gravity through the drain tile to the sump pit, a lined basin recessed into the basement floor. The pit serves as the collection point for all water entering the drainage network.

The pump activates automatically when water reaches a preset level in the pit. A float switch rides the water surface inside the sump pit. When rising water lifts the float to its activation point, the submersible pump turns on and pushes water up through the discharge line and out of the basement. When the water level drops below the shutoff point, the float switch deactivates the pump. This cycle repeats as water continues entering the drain tile system during rain events or periods of high water table.

The discharge line carries water from the pump to a point away from the foundation. A vertical pipe rises from the pump inside the pit, passes through the basement wall or rim joist, and extends horizontally to a discharge point at least 10 feet from the foundation. A check valve rating on the vertical section prevents discharged water from flowing back into the pit when the pump shuts off. The entire system — drain tile, pit, pump, discharge — forms a closed loop that continuously manages groundwater as long as the pump has power and is properly maintained. For a detailed look at how this fits into the broader interior waterproofing system, see our dedicated page.

How Do You Size a Sump Pump?

Submersible pump horsepower is the starting point for sizing. A one-third horsepower pump is the standard for most residential basements in Kansas City and Des Moines. It handles typical cove joint seepage and moderate water table conditions without excessive cycling. A one-half horsepower pump is appropriate for homes with high water volume — deep basements, persistently high water tables, or large foundation perimeters — where the inflow rate regularly exceeds what a smaller pump can manage without running continuously.

Discharge head calculation determines the actual pumping capacity your system needs. The pump does not deliver its rated gallons per hour (GPH) in real-world conditions. Every foot of vertical lift between the pump and the discharge outlet reduces output. Every foot of horizontal run adds friction loss. A pump rated at 3,000 GPH at zero head may deliver only 1,800 GPH when pushing water 8 feet up and 20 feet out. The discharge head is the sum of vertical lift, equivalent horizontal friction, and fitting losses — and it must be calculated before selecting a pump.

The pit liner diameter directly affects pump cycling and longevity. An 18-inch pit liner diameter is the minimum for residential installations, but a 24-inch pit is preferred. The larger diameter stores more water between pump cycles, which means the pump runs less frequently and each run is longer and more efficient. Short, rapid cycles — known as short-cycling — overheat the motor and wear the float switch mechanism. A properly sized pit with adequate volume reduces cycling frequency and extends the pump's service life.

Pump capacity in GPH must exceed the inflow rate during peak conditions. The inflow rate is how fast water enters the pit from the drain tile system during the heaviest rain event the home experiences. If the pit fills faster than the pump can empty it, the system overflows. A pour-test — filling the pit with a known volume of water and timing how quickly it refills after the pump discharges — provides a rough measure of inflow rate. The pump's effective GPH at your specific discharge head must exceed that measured inflow with margin to spare.

Why Is Battery Backup Non-Negotiable in Kansas City and Des Moines?

The storms that cause the most water entry are the same storms that knock out power. Severe thunderstorms, straight-line winds, and ice events are common across both metros, and each carries a high probability of electrical outage. A sump pump without backup power is offline precisely when the basement needs it most. In Kansas City's April-through-June storm season and Des Moines' spring thaw period, the correlation between high water volume and power loss is strong enough that a battery backup system should be considered essential, not optional.

Battery backup ampere-hour ratings determine how long the system runs without utility power. Most residential battery backup sump pumps use sealed AGM (Absorbed Glass Mat) batteries rated between 75 and 120 ampere-hours. A 75 Ah battery powering a backup pump that cycles intermittently provides approximately 4 to 8 hours of runtime. A 120 Ah battery extends that to 8 to 12 hours under similar conditions. The actual runtime depends on how frequently the pump cycles — a high water table with continuous inflow drains the battery faster than intermittent seepage.

AGM batteries are the standard for sump backup because they are sealed and maintenance-free. Unlike flooded lead-acid batteries, AGM cells do not require water level checks or vent to the room. They can be installed in the basement near the sump pit without producing hydrogen gas during charging. AGM batteries hold their charge well during standby periods and deliver high current on demand when the backup pump activates. They should be replaced every 3 to 5 years regardless of visible condition, as internal capacity degrades with age.

An alarm trigger threshold alerts you when the backup system activates. Most battery backup units include an audible alarm — typically 80 to 90 decibels — that sounds when the primary pump fails and the backup engages. Some systems also alarm when battery voltage drops below a functional threshold, indicating the backup is running low. A backup alarm decibel level of 85 dB is audible throughout most homes and provides adequate warning to take action, such as reducing water use or preparing for manual water removal if the outage extends beyond battery capacity. For homes with known sump pump problems, addressing the primary system reduces reliance on backup.

What Are the Discharge Rules?

Never discharge sump pump water into the sanitary sewer — it is illegal in most Kansas City and Des Moines jurisdictions. Sump water is clean groundwater, not wastewater. Routing it into the sanitary sewer system overloads treatment plants during storms and can cause sanitary sewer overflows into streets and basements. Municipal codes in Johnson County, Jackson County, Polk County, and surrounding jurisdictions explicitly prohibit sump-to-sewer connections. Violations can result in fines and mandatory disconnection.

The discharge line diameter must match or exceed the pump outlet size. Most residential sump pumps have a 1.5-inch discharge outlet. The discharge line should be 1.5 inches minimum, with 2-inch pipe preferred for longer runs to reduce friction loss. Undersized discharge lines restrict flow, increase back-pressure on the pump, and reduce effective GPH output. The discharge line diameter should be consistent from the pump to the outlet — reducing pipe size at any point in the run creates a bottleneck that limits the system's capacity.

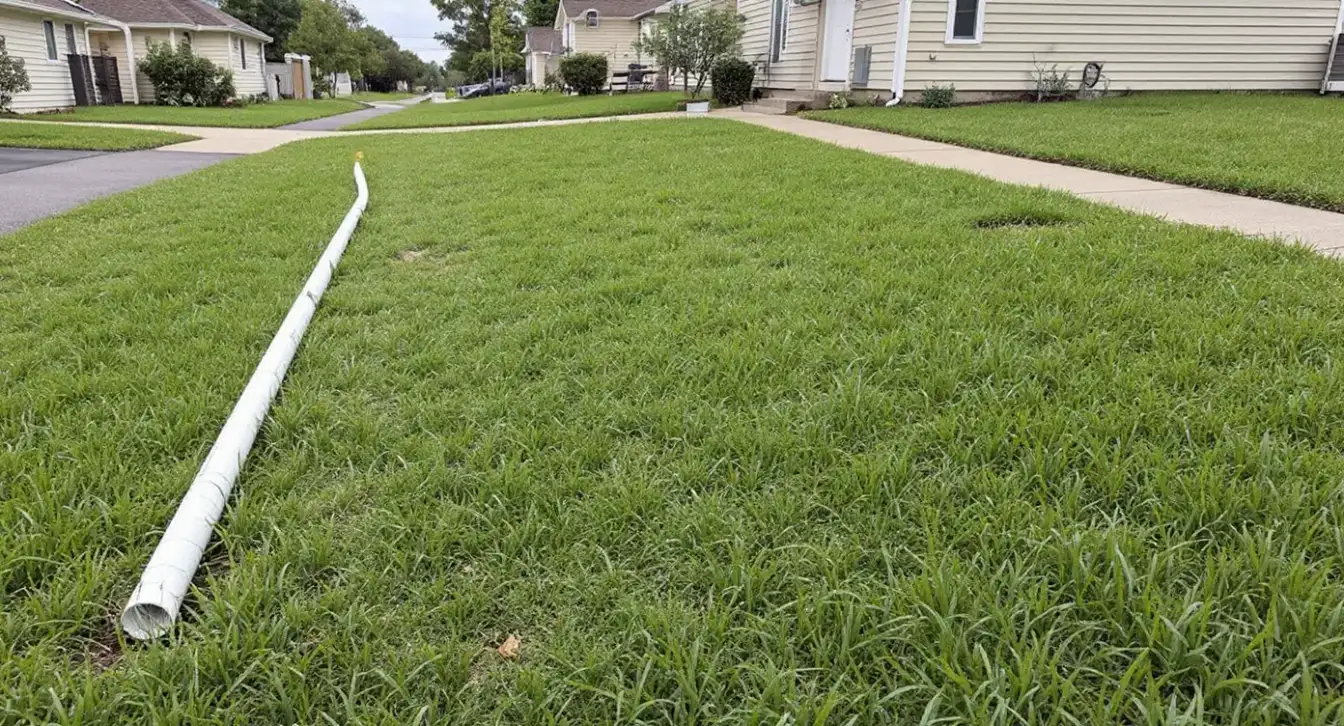

The discharge outlet must be at least 10 feet from the foundation. Water discharged closer than 10 feet can re-infiltrate the soil around the foundation and re-enter the drain tile system, creating a recirculation loop where the pump runs continuously without actually lowering the water level. The outlet should discharge onto a graded surface that slopes away from the home. Splashblocks or buried extension pipes help direct the water further from the foundation and prevent erosion at the outlet point.

The check valve prevents backflow and must be rated for the system's pressure. A check valve installed on the vertical section of the discharge line stops water from draining back into the pit when the pump shuts off. Without a functioning check valve, the pump must re-pump the same water on every cycle — wasting energy, increasing cycle frequency, and accelerating wear. The check valve rating should match the discharge line diameter and the system's maximum head pressure. Spring-loaded check valves are preferred over flapper-style valves for reliability.

Discharge line freeze prevention is critical in Midwest winters. The frost line in Kansas City extends 24 to 30 inches below grade. In Des Moines, it reaches 36 to 42 inches. Any section of the discharge line above the frost line is vulnerable to freezing during winter, which blocks discharge entirely and causes the pit to overflow. Burying the discharge line below the frost line eliminates this risk. Where burial is not feasible, freeze guard fittings — pop-off outlets that allow water to exit above grade if the buried line freezes — provide a failsafe. Understanding the science of water pressure and seasonal freeze-thaw cycles helps explain why winter discharge protection matters.

What Maintenance Does a Sump Pump System Require?

Annual maintenance should include testing the pump activation, cleaning the pit, and inspecting the check valve. Pour a bucket of water into the pit to confirm the float switch activates the pump at the correct level and that the pump discharges water through the line without hesitation. Remove any debris, gravel, or sediment that has accumulated in the pit — material that can clog the pump intake or interfere with float switch travel. Inspect the check valve for signs of corrosion, mineral buildup, or mechanical failure.

Quarterly pour-tests verify the system is ready before storm season. A pour-test is simple: pour 5 gallons of water into the pit and observe. The pump should activate within seconds of the float reaching its trigger level, discharge the water audibly through the line, and shut off cleanly when the water level drops. If the pump hesitates, runs but does not discharge, or fails to shut off, the system needs service before the next rain event. Quarterly testing catches problems early — before they result in a flooded basement.

The primary pump should be replaced every 5 to 7 years as a preventive measure. Submersible pumps degrade from continuous exposure to water, mineral deposits, and thermal cycling. A pump that has run reliably for seven years may fail without warning during the next heavy storm. Proactive replacement on a scheduled interval — rather than waiting for failure — eliminates the risk of an unplanned outage. The old pump can be kept as an emergency spare if it is still functional at the time of replacement.

Float switch travel inspection prevents the most common sump pump failure mode. The float switch must move freely through its full range — from the off position at low water to the on position at high water — without catching on the pit wall, the discharge pipe, or the pump body. A stuck float switch is the single most frequent cause of sump pump failure in residential systems. During each inspection, manually lift and lower the float to confirm it moves without obstruction and that the pump responds to each position change. For a full overview of what to look for, our homeowner guide covers the complete maintenance checklist and how it connects to your waterproofing system's reliability. Current maintenance and replacement costs are covered in our cost guide.
