Wall Anchors: How Plate Anchor Systems Stabilize Bowing Basement Walls

How Do Wall Anchors Work?

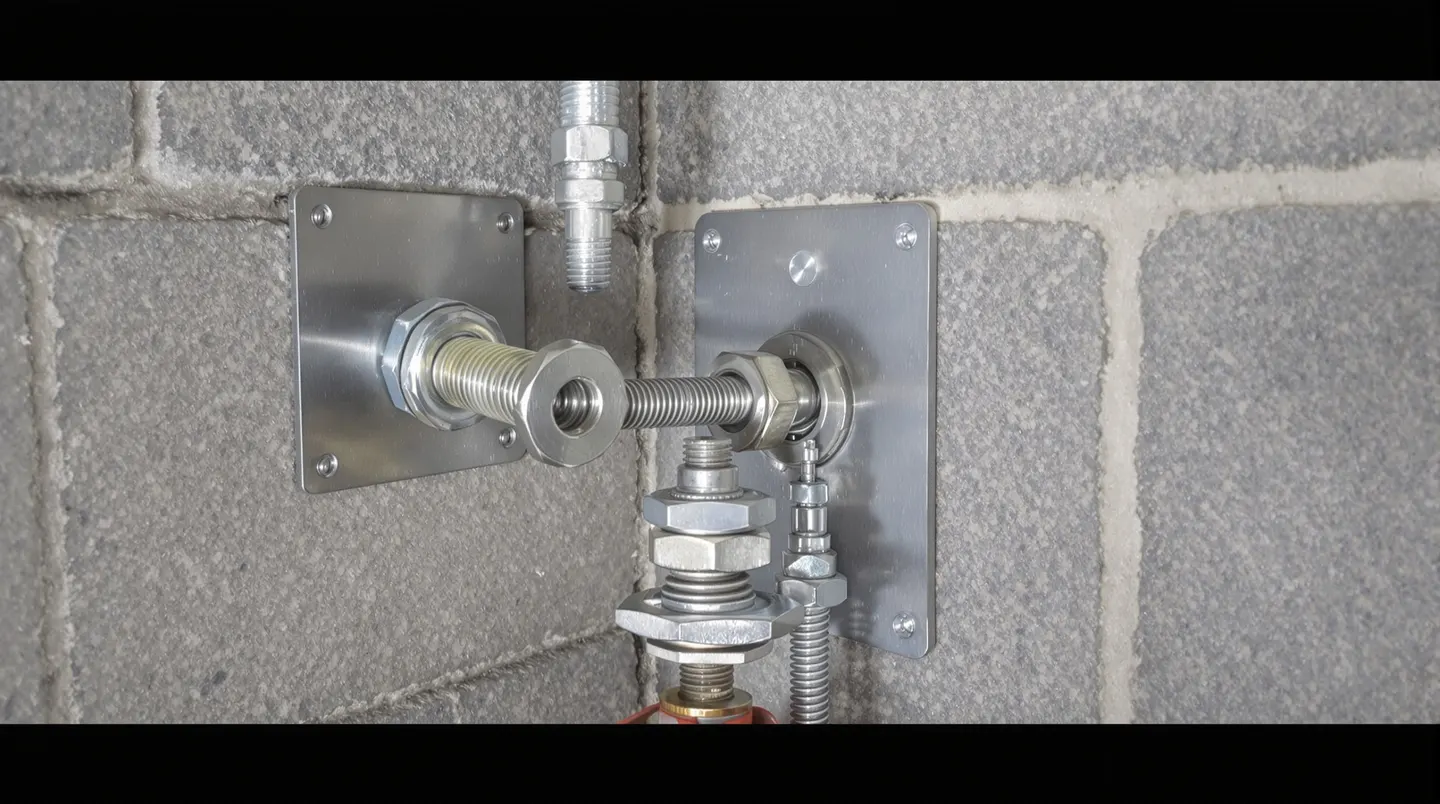

The plate anchor assembly on the interior wall is the load transfer point. A steel bearing plate washer — typically 12 to 18 inches square — is mounted flat against the interior wall face at the point of maximum deflection. The bearing plate washer distributes the pulling force across a wide area of the wall surface, preventing the anchor from punching through a single block or section of concrete. The plate is secured by a heavy nut on the end of the threaded rod that passes through the wall.

A threaded rod connects the interior plate to an earth anchor buried in stable soil. The rod passes through a bored hole in the foundation wall and extends underground at a slight downward angle until it reaches the earth anchor helix. The anchor shaft extension allows the rod to reach soil that is outside the zone of active lateral pressure — the same pressure that is causing the wall to bow. By anchoring in stable soil beyond this zone, the system creates a fixed point that the wall can be pulled toward.

Tightening the threaded rod applies inward-pulling force on the earth anchor and outward-pulling force on the wall. When the nut on the interior bearing plate washer is tightened, the threaded rod torque creates tension along the rod. This tension pulls the wall toward the earth anchor. At installation, the rod is tightened just enough to stabilize the wall in its current position. Over subsequent seasonal tightening cycles, additional torque is applied to incrementally draw the wall back toward plumb.

The system works because it anchors in soil that is not part of the problem. The soil immediately behind the basement wall is the source of lateral pressure — it expands when wet, compresses when dry, and pushes inward against the wall with each cycle. The earth anchor helix sits in undisturbed soil well beyond this active zone, typically 10 to 15 feet from the wall. That soil is not cycling with the same moisture changes, so the anchor point remains stable year-round. This is what allows the system to not just hold the wall but to gradually move it. For a deeper explanation of how lateral earth pressure and hydrostatic pressure drive wall movement, see our analysis of the science behind basement water pressure.

What Are the Components of a Wall Anchor System?

The interior bearing plate washer is the only component visible inside the basement. It is a flat steel plate, usually galvanized or powder-coated, that sits flush against the wall. The plate size is engineered to distribute the anchor's pulling force across enough wall area to avoid localized crushing. On block walls, the plate typically spans at least two block courses vertically and two blocks horizontally.

The threaded rod is the tension member that connects the two anchor points. It is typically 5/8-inch or 3/4-inch diameter galvanized steel, threaded along its full length to allow fine adjustment of the threaded rod torque. The rod passes through the wall at a slight angle — usually 10 to 15 degrees below horizontal — and extends underground to the earth anchor. The anchor shaft extension can be added in sections to reach the required soil embedment depth.

The earth anchor helix is a helical steel plate welded to the end of the anchor shaft. It resembles a large screw and is driven into the soil by rotation. The helix engages with stable soil and resists being pulled back toward the wall. The diameter and number of helix plates are selected based on soil conditions — softer soils require larger or multiple helices to achieve the required holding capacity. The soil embedment depth must place the helix entirely beyond the active pressure zone to ensure it anchors in non-moving soil.

How Are Wall Anchors Installed?

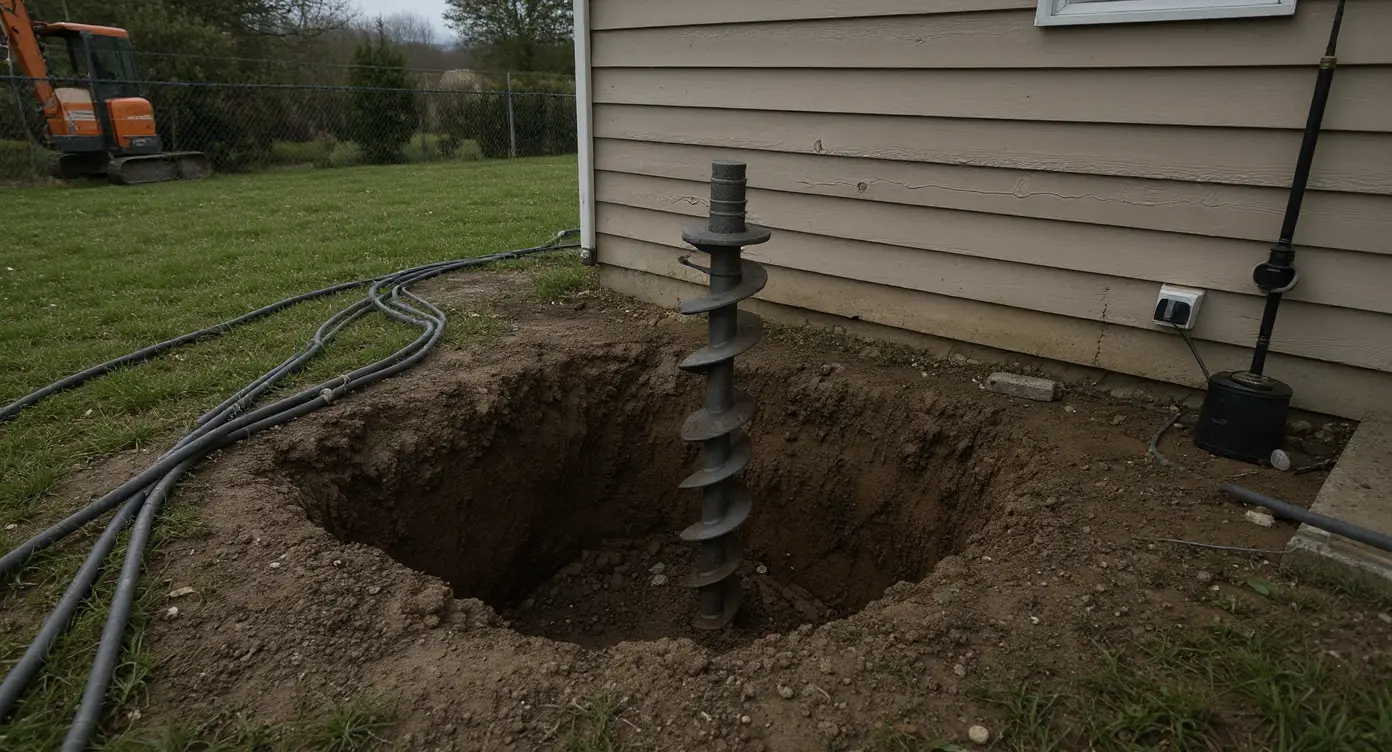

Installation begins with small access pits on the exterior of the home. At each anchor location, a pit is excavated roughly 2 to 3 feet in diameter and 3 to 4 feet deep. This pit provides access for driving the earth anchor helix into the soil at the correct angle and depth. The pits are positioned directly opposite the planned interior bearing plate washer locations on the wall.

The earth anchor helix is driven into stable soil using hydraulic equipment. From the access pit, the anchor shaft is rotated into the ground at a slight downward angle. The anchor shaft extension sections are added as the helix advances deeper. The installation continues until the helix reaches the required soil embedment depth — far enough from the wall that it sits in undisturbed soil beyond the active pressure zone. Torque readings during installation confirm that the anchor has engaged with soil of adequate bearing capacity.

A hole is bored through the foundation wall to connect the rod to the interior plate. Using a core drill, a hole slightly larger than the threaded rod diameter is drilled through the wall at the planned anchor height. The threaded rod is then inserted through the wall and coupled to the earth anchor shaft on the exterior side. On the interior side, the bearing plate washer is placed over the rod and secured with a heavy nut.

Initial threaded rod torque is applied to stabilize the wall in its current position. The interior nut is tightened to a specified torque value that applies enough tension to prevent further inward movement without overstressing the wall. This initial setting does not attempt to straighten the wall — it locks the wall at its current deflection. The exterior access pits are then backfilled and compacted. The entire process for a single wall typically takes one day.

When Are Wall Anchors the Right Choice?

Wall anchors are most effective for walls at Stage 2 to Stage 3 on the basement wall bowing severity scale — roughly 1/2 inch to 4 inches of inward deflection. At these stages, the wall has moved enough to require structural intervention but retains enough integrity to respond to the pulling force of the anchor system. The wall straightening potential is highest when anchors are installed before the wall reaches Stage 3, because less deflection means fewer tightening cycles needed to approach plumb.

Both block and poured concrete walls are candidates for wall anchors. Block walls with horizontal mortar joint cracking at mid-height are the most common application. Poured concrete walls with inward deflection at pour joints or stress concentration points also respond well. The bearing plate washer distributes force effectively on both wall types, though the plate size may differ based on the wall material's surface strength.

Exterior soil access is required. The earth anchor helix must be driven into soil beyond the foundation, which means there must be accessible ground on the exterior side of the affected wall. Walls that are adjacent to driveways, sidewalks, neighboring structures, or property lines may not have the clearance needed for excavation and anchor placement. When exterior access is limited, carbon fiber strap systems offer an interior-only alternative for lighter deflection.

The key advantage over other methods is the ability to straighten, not just stabilize. Carbon fiber straps arrest movement but cannot reverse it. Steel I-beams resist further deflection but do not pull the wall back. Wall anchors are the only commonly used system that allows incremental wall straightening over time through the seasonal tightening schedule. For homeowners who want to restore wall position rather than accept the current deflection, anchors are often the preferred method. Our complete guide to basement water pressure covers how to match repair methods to your specific conditions.

What Is the Seasonal Tightening Process?

After installation, the threaded rod torque is increased periodically to pull the wall incrementally toward plumb. The seasonal tightening schedule typically calls for one adjustment per year, timed to coincide with the soil's dry season when lateral pressure is at its lowest. In Kansas City and Des Moines, late summer or early fall — after the spring saturation period has passed and the soil has contracted — is the optimal tightening window. Tightening during low-pressure periods allows the wall to move outward with less resistance.

Each tightening cycle moves the wall a small, controlled amount. A typical annual adjustment pulls the wall 1/8 to 1/4 inch closer to plumb. The amount of movement per cycle depends on the current deflection, the soil conditions, and the wall's flexibility. Attempting to move the wall too far in a single cycle risks cracking the wall material or overstressing the mortar joints. The incremental approach respects the wall's structural limits and uses the natural soil moisture cycling to assist the process.

Full wall straightening can take 2 to 5 years depending on the starting deflection. A wall with 1 inch of deflection may return to near-plumb within 2 to 3 years of annual tightening. A wall with 3 inches of deflection may require 4 to 5 years and may not achieve full return to plumb — particularly if mortar joints have permanently deformed. The seasonal tightening schedule is documented at installation, and most contractors offer annual service visits to perform the adjustment and measure progress.

The tightening process is simple and takes minutes per anchor. A technician uses a wrench to turn the interior nut a specified number of turns or to a target torque reading. The bearing plate washer transfers the increased tension to the wall face, and the rod pulls the wall toward the earth anchor. Deflection is measured before and after each adjustment to track progress. Homeowners receive documentation of each tightening cycle showing the cumulative wall movement.

What Are the Limitations of Wall Anchors?

Exterior access is the primary constraint. Wall anchors cannot be installed on walls that share a boundary with another structure, a poured concrete driveway, a public sidewalk, or a neighboring property. The earth anchor helix requires 10 to 15 feet of accessible soil on the exterior side of the wall to reach the required soil embedment depth. If the exterior is blocked, the system simply cannot be installed regardless of how well it would otherwise perform.

Stable soil must be reachable at the required depth. The entire system depends on the earth anchor helix engaging with undisturbed soil that has adequate bearing capacity. If the soil beyond the active pressure zone is too soft, too wet, or composed of fill material that was not properly compacted, the anchor will not hold. A soil assessment before installation confirms that stable bearing soil exists at the planned anchor shaft extension depth. In some Kansas City and Des Moines locations, fill soils or very deep clay layers make adequate anchoring impossible.

Each anchor resists load at a single point along the wall. Unlike carbon fiber straps that distribute resistance across the full strap width, each plate anchor assembly is a point load. Long walls require multiple anchors spaced at intervals to provide uniform resistance. If anchors are spaced too far apart, the wall sections between anchors may continue to deflect while the sections at anchor points are held. Proper spacing — typically 5 to 6 feet between anchors — prevents this uneven behavior.

Wall straightening is not guaranteed. The seasonal tightening schedule can achieve measurable straightening in most cases, but the degree of recovery depends on factors outside the system's control. Walls with severely deteriorated mortar joints may not move uniformly when tension is applied. Walls that have been deflected for many years may have settled into a position where the surrounding soil has recompacted against the deflected shape. For a complete comparison of costs across all wall stabilization methods, see the basement waterproofing and wall repair cost guide.
