Foundation Wall Replacement: The Last Resort for Walls Failed by Lateral Water Pressure

When Does a Basement Wall Need Replacement?

A wall needs replacement when it has reached Stage 4 failure — deflection exceeding four inches, shearing along mortar joints across multiple courses, or rotation at the base that has compromised the structural load path restoration capacity. At this stage, the wall cannot reliably transfer the weight of the house above down through the foundation to the footing. Stabilization methods that anchor or brace the wall assume the wall itself has enough remaining integrity to serve as the structural connection — when that integrity is gone, bracing a failed wall accomplishes nothing.

Shearing along mortar joints is the clearest sign that a block wall has moved past the stabilization threshold. When horizontal cracks propagate through mortar joints across the full width of the wall and vertical displacement occurs — one course sliding past the course below — the wall is no longer acting as a monolithic structure. It has separated into independent sections that can move relative to each other. No anchor, strap, or beam can restore monolithic behavior to a wall that has fractured into separate pieces.

Wall rotation at the base — where the bottom of the wall kicks inward while the top remains relatively fixed — indicates the footing-to-wall connection has failed. The wall is pivoting rather than bowing in a uniform curve. This rotation disrupts the structural load path from the house framing above, through the wall, to the footing below. Once this load path is broken, the wall is not functioning as a foundation element — it is an unsupported panel being pushed inward by soil pressure. For severity staging and visual indicators, see our bowing wall diagnosis page.

A professional structural evaluation is required before committing to wall replacement. The evaluation confirms that the wall is truly beyond stabilization and identifies the full scope of work — including whether adjacent walls, the footing, or the floor slab have been affected by the failure. Replacement without understanding the full condition risks rebuilding a wall on a compromised footing or connecting it to adjacent walls that are also failing.

What Causes Walls to Fail Beyond Repair?

Decades of unchecked lateral earth pressure from water-saturated soil is the primary driver of wall failure in Kansas City and Des Moines basements. The clay soils in both markets — Wymore and Ladoga series in KC, glacial till in Des Moines — absorb water after rain, expand against the foundation wall, and apply lateral force that pushes the wall inward. Each wet-dry cycle ratchets the wall slightly further: the clay pushes the wall during wet periods and does not pull it back during dry periods. Over 30 to 50 years, these incremental movements accumulate into inches of deflection.

KC clay expansion cycles are particularly destructive because the soil's volume change is extreme. Wymore clay can change volume by 10% or more between its saturated and dry states. Each cycle applies a pulse of lateral pressure to the foundation wall. Without drainage to remove water from the backfill zone, every rainstorm recharges the clay, and every dry spell allows the clay to crack and accept even more water during the next rain. The wall absorbs this cumulative loading year after year with no mechanism to recover.

Block wall mortar joint failure propagates progressively through multiple courses once it begins. The mortar joints in a concrete block wall are the weakest plane — they crack first under lateral load. Once a horizontal crack forms at one course, the load concentrates at the courses above and below, accelerating cracking at those levels. This progressive failure is why block walls can appear stable for years and then deteriorate rapidly: the first crack initiates a cascade that weakens the entire wall height within a few wet seasons.

The fundamental problem is structural load path restoration — when the wall can no longer transfer loads from the structure above to the footing below. A functioning foundation wall carries the weight of the house (vertical loads) while resisting soil pressure (horizontal loads). When bowing and cracking compromise the wall's ability to carry both simultaneously, the wall has failed as a structural element. Replacement is not just about fixing the visible damage — it is about rebuilding the load path that connects the house to its foundation.

How Is Wall Replacement Performed?

Wall replacement begins with full-height excavation on the exterior side of the damaged wall. The soil is removed from grade level down to the footing, exposing the full exterior face of the wall. The excavation must extend wide enough to provide working room for wall demolition, forming, and pouring — typically four to six feet beyond the wall face. In Kansas City and Des Moines, this means removing and stockpiling large volumes of clay soil, which must be managed carefully to avoid loading adjacent structures or blocking drainage.

Before the wall is removed, a temporary shoring system is installed inside the basement to support the structure above. Steel columns, engineered lumber beams, or hydraulic shoring posts are placed to carry the floor joists, beams, and any point loads that the foundation wall currently supports. The shoring must be designed for the specific loads involved — not estimated. An undersized shoring system can fail during wall removal, creating a collapse hazard. The shoring remains in place until the new wall is poured, cured, and capable of bearing the structural loads.

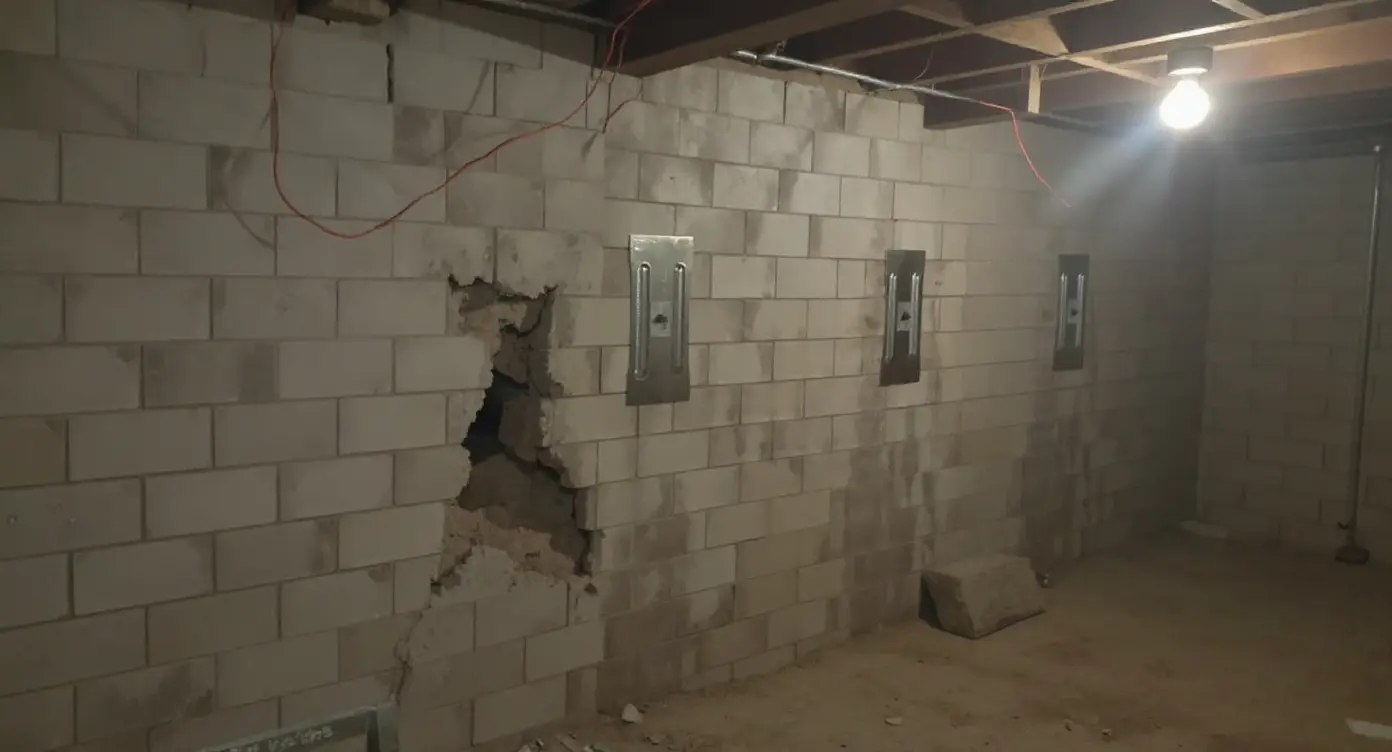

The failed wall section is demolished and removed. Block walls are taken apart course by course or broken out with equipment. Poured concrete walls are saw-cut and removed in sections. The footing beneath is inspected for damage — if the footing has cracked, settled, or shifted, it must be repaired or replaced before the new wall is built on it. A new wall built on a compromised footing will eventually develop the same problems.

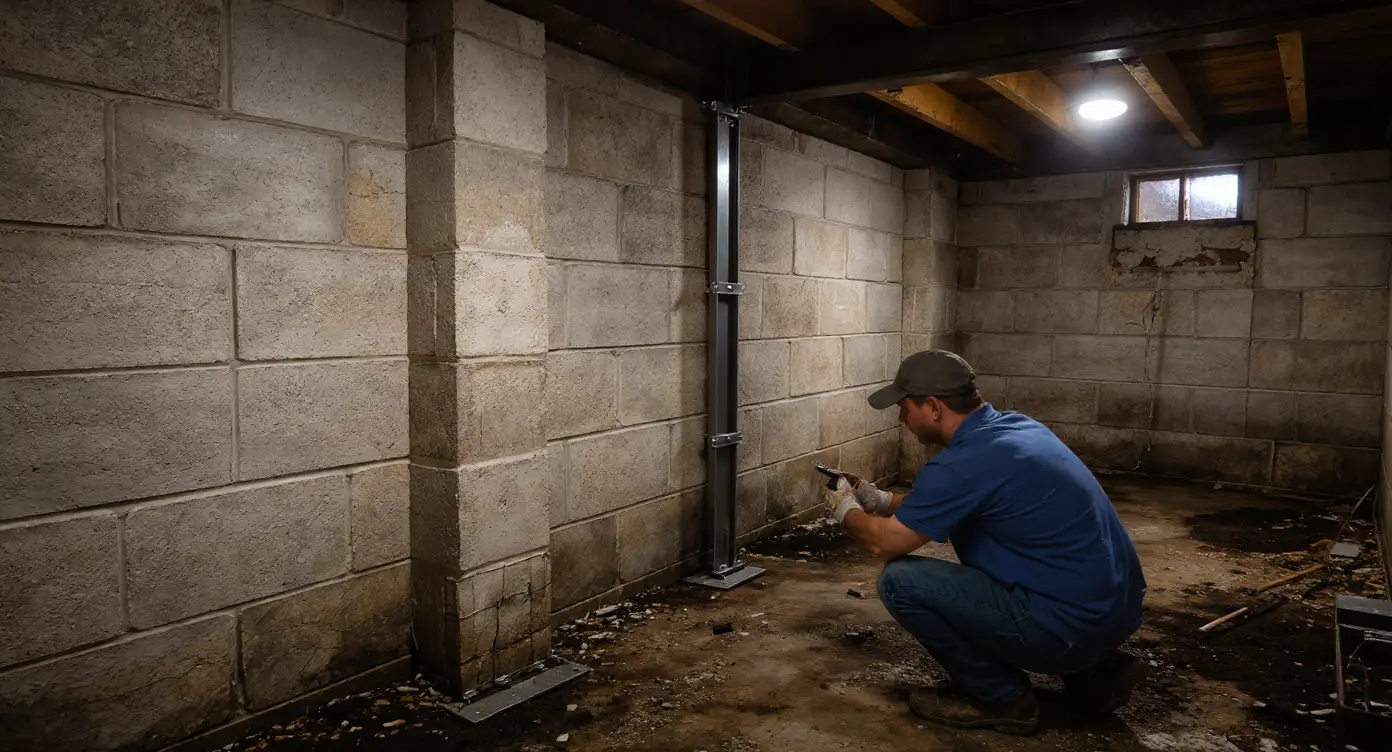

New pour reinforcement is installed, starting with rebar dowel connections to the existing footing. Holes are drilled into the top of the footing and rebar is set with structural epoxy to create a mechanical bond between the new wall and the existing footing. Vertical and horizontal rebar is tied to create a reinforcement cage within the wall forms. The rebar dowel connection at the footing is critical — it prevents the new wall from sliding or separating at the base under future lateral loading.

Wall forms are set with proper form tie spacing to maintain uniform wall thickness during the pour. Form ties are the mechanical connectors that hold the interior and exterior form panels at the correct spacing — typically 8 to 10 inches for residential foundation walls. The form tie spacing determines how much concrete pressure the forms can resist without bulging. Forms are braced and aligned, then concrete is placed in lifts, vibrated to consolidate, and allowed to cure before form removal.

After the forms are stripped and the concrete has reached adequate strength, waterproof membrane application seals the new exterior face. This step is not optional — it is the single most important difference between the new wall and the old one. A spray-applied or sheet membrane prevents water from contacting the concrete surface and migrating through the wall. The original wall almost certainly had no waterproofing, or its waterproofing had failed decades ago, which is part of why the wall deteriorated under sustained moisture exposure.

Backfill is placed in controlled compaction lifts — not dumped in all at once. Each backfill compaction lift is a layer of material placed and mechanically compacted to a specified density before the next layer is added. This controlled process prevents the backfill from settling unevenly and creating voids that collect water against the wall. Ideally, the backfill material is clean drainage aggregate — not the excavated clay — to ensure water drains freely to the footing-level drain tile rather than being held against the new wall by the same clay that destroyed the original.

What Should Be Done Differently the Second Time?

Replacing a failed wall without addressing the water pressure that caused the failure guarantees the same outcome on a new timeline. The original wall failed because lateral earth pressure from water-saturated clay pushed it inward over decades. If the new wall is backfilled with the same clay, with no waterproofing, no drainage, and the same surface grading that directs water toward the foundation, the cycle begins again on day one. Wall replacement is the opportunity — and the obligation — to fix the root cause.

Waterproof the new wall before backfill. A continuous waterproof membrane on the exterior face prevents water from saturating the concrete and migrating through to the interior. This is standard practice on new construction but was often omitted on homes built before the 1980s. The membrane should extend from the top of the wall to below grade, with sealed seams and termination details that prevent water from getting behind the membrane at the top edge.

Install exterior drain tile at the footing level to intercept water before it builds pressure against the wall. A perforated pipe in a gravel bed alongside the footing collects water that percolates down through the backfill and routes it to a sump or daylight outlet. This drain tile relieves hydrostatic pressure at the base of the wall — the zone where pressure is highest and where most wall failures initiate. Without footing-level drainage, the new wall faces the same sustained pressure loading that destroyed the original.

Use clean drainage aggregate in the backfill zone instead of the excavated clay. Washed gravel or crushed stone in the backfill zone allows water to drain freely downward to the drain tile rather than being held against the wall by expansive clay. The drainage aggregate zone should extend at least 12 inches from the wall face for the full height of the backfill. Surface grading must direct water away from the foundation — a minimum slope of 6 inches over the first 10 feet from the house — to reduce the total volume of water entering the backfill zone. For a comprehensive overview of how drainage, waterproofing, and wall protection work together, see our complete basement protection guide.

What Are the Alternatives Before Committing to Replacement?

Before committing to the cost and disruption of wall replacement, every viable stabilization method should be evaluated by a qualified professional. Wall replacement is a major construction project — full-height excavation, temporary shoring, demolition, forming, pouring, waterproofing, and backfill. If a less invasive method can arrest the movement and preserve the existing wall, it should be considered. The decision depends on how far the wall has moved, whether the wall material is still structurally competent, and whether straightening is necessary.

Helical tiebacks are the most aggressive non-replacement stabilization method and the strongest alternative to wall replacement. Tiebacks can stabilize walls with two to four or more inches of deflection and can be progressively tensioned to recover some of that deflection over time. If the wall material — the concrete or block itself — still has enough integrity to transfer the tieback forces, tiebacks can save a wall that appears to be beyond recovery. The torque-to-capacity verification during installation confirms whether adequate holding force can be achieved in the soil conditions present.

Wall anchors, I-beams, and carbon fiber straps address progressively less severe conditions. Wall anchors can stabilize and gradually straighten walls with one to three inches of deflection but require exterior yard space. I-beams arrest movement from inside without excavation but cannot straighten. Carbon fiber straps are limited to walls under two inches of deflection. None of these methods are appropriate for Stage 4 failure — they are listed here to establish the threshold: if these methods have been ruled out, the wall is either a tieback candidate or a replacement candidate. For pricing on all methods, see our cost comparison page.

Partial reconstruction — replacing only the most severely damaged section of the wall — is sometimes possible when failure is localized. If a four-foot section at the center of the wall has sheared and displaced while the ends remain stable, that section can be removed and rebuilt while the rest of the wall is stabilized with tiebacks or anchors. Partial reconstruction reduces cost and excavation scope but requires careful engineering at the joints between old and new wall sections to ensure the connection transfers loads properly.
