Bowing Basement Walls: How to Identify, Measure, and Understand Wall Failure from Water Pressure

What Causes Basement Walls to Bow Inward?

Saturated soil pressing sideways against the wall is the direct cause. Lateral earth pressure increases with depth and intensifies when the soil absorbs water. In Kansas City, the Wymore-Ladoga clay swells when wet and generates additional confining pressure against the foundation. In Des Moines, the persistently high water table in glacial till produces sustained hydrostatic force against the lower wall. For a full breakdown of how these two pressure types work at the physics level, see our analysis of hydrostatic and lateral earth pressure.

Block walls carry the highest risk of bowing. Concrete masonry unit (CMU) walls — the standard 8-inch block construction used in most Kansas City and Des Moines homes built before 2000 — rely on mortar joints for structural continuity. Those mortar joints are weaker in tension than the blocks themselves. When lateral pressure exceeds the wall's bending capacity, the mortar joint failure occurs at or near mid-height, where the bending moment is greatest. The wall hinges inward at this point, creating the characteristic mid-height horizontal crack.

The unsupported span ratio determines vulnerability. A basement wall is braced at the top by the floor system and at the bottom by the footing. The unsupported span is the vertical distance between these two restraints — typically 7 to 8 feet. Walls with longer unsupported spans or walls that have lost their top restraint (common in homes where the rim joist connection has deteriorated) are more susceptible to inward deflection under the same pressure load.

How Can You Identify a Bowing Basement Wall?

A horizontal crack at mid-height is the first visible indicator. Stand in the basement and look at the wall from one end. A wall that is bowing will show a horizontal crack running along a mortar joint roughly 3 to 4 feet above the floor in a standard 8-foot wall. This crack may start as a hairline — barely visible unless you look closely — or it may be open enough to insert a fingertip. The crack follows the mortar joint because the joint is the weakest link in the block assembly.

Viewing the wall from a corner reveals inward lean. Position yourself at one end of the wall and sight along its length. A straight wall will appear as a flat plane. A bowing wall will show a visible inward curve, with the maximum deflection near mid-height. This visual check is surprisingly effective — most homeowners can detect deflection of 1 inch or more by eye from the corner perspective.

Mortar joint separation tells you the wall is actively moving. Run your fingers along the horizontal mortar joints near mid-height. If mortar is crumbling, missing, or recessed behind the block faces, the joint is separating under bending stress. In advanced cases, you can see daylight or feel air movement through the joint from the exterior soil side. Stair-step cracking at the corners — diagonal cracks that follow the mortar joints in a staircase pattern — indicates the bowing force is also pulling the wall away from the perpendicular walls at each end.

What Are the Four Stages of Basement Wall Bowing?

Wall bowing follows a predictable progression. The basement wall staging scale below breaks the progression into four stages based on deflection measurement, visible damage, and structural urgency. Each stage corresponds to a different set of appropriate repair methods. Identifying your wall's current stage is the single most important step in determining what action to take.

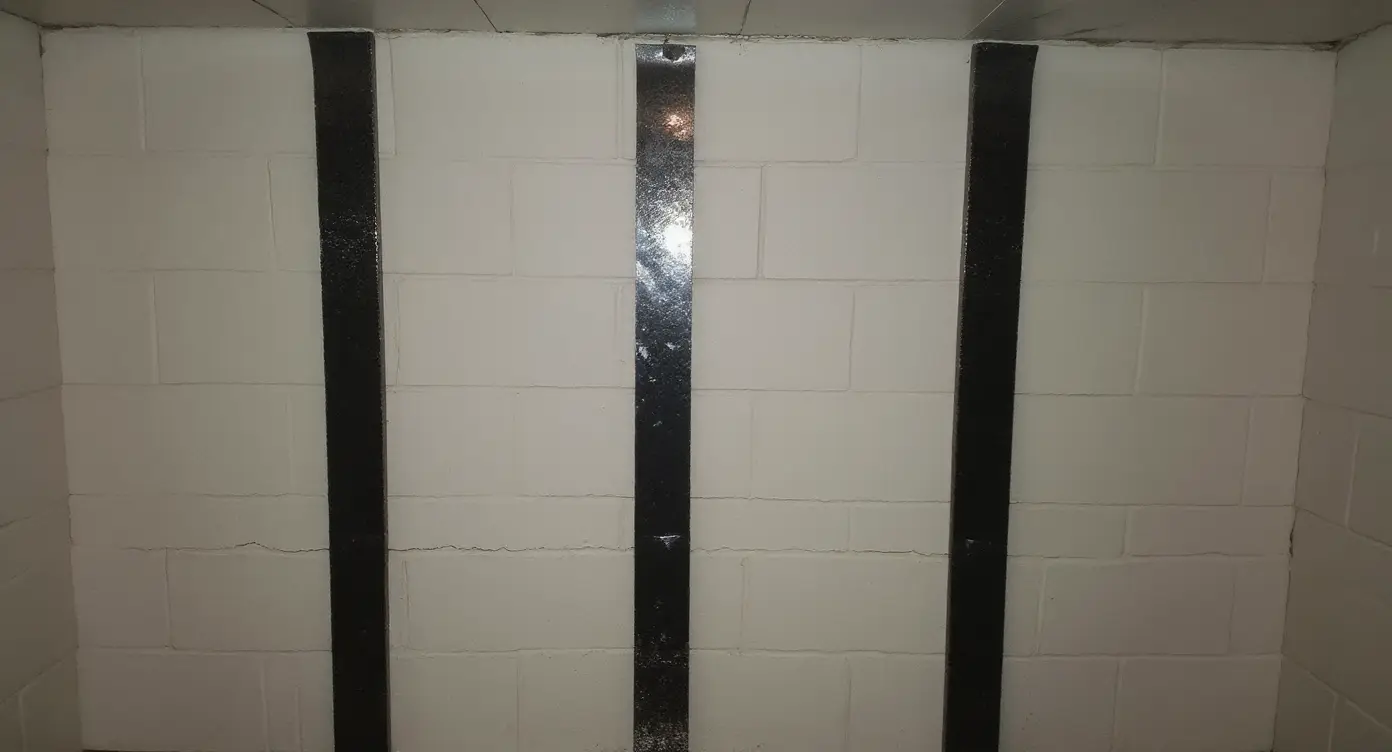

Stage 2 is the most cost-effective point to intervene. At this stage, the wall has shown clear evidence of active movement but retains enough structural integrity for reinforcement methods like carbon fiber strap systems to halt further deflection. Waiting until Stage 3 or Stage 4 eliminates the least invasive options and often requires excavation on the exterior of the home.

Progression between stages accelerates over time. A wall may remain at Stage 1 for a decade or more. But once the mid-height horizontal crack opens and the wall begins to deflect measurably, each seasonal pressure cycle pushes it further. The wall's remaining resistance decreases as deflection increases — a feedback loop that speeds progression from Stage 2 to Stage 3 significantly compared to the years spent at Stage 1.

How Do Block Walls Fail Differently Than Poured Concrete Walls?

Block walls fail along their mortar joints. A concrete masonry unit wall is a stack of individual blocks held together by mortar. Under lateral pressure, the mortar joints — not the blocks — absorb the bending stress. When the stress exceeds the mortar's tensile capacity, a horizontal crack opens along the mortar joint at mid-height. This is mortar joint failure in its most common form. The crack allows the upper portion of the wall to hinge inward while the lower portion, restrained by the footing, remains closer to plumb.

Hollow block cores create a hidden water reservoir. Standard 8-inch CMU blocks have hollow cores that run vertically through the wall. When mortar joints crack on the exterior face, groundwater enters these cores. A single 8-foot-tall column of hollow blocks can hold several gallons of water. This water adds weight to the wall, increases the inward force at the point of maximum deflection, and creates internal hydrostatic pressure that accelerates mortar joint separation from the inside.

Poured concrete walls resist bowing but crack differently. A poured wall is a monolithic structure with no mortar joints to serve as weak planes. It has substantially higher bending resistance than an equivalent-thickness block wall. When poured walls do fail under lateral pressure, they develop vertical cracks at stress concentrations — corners of window openings, pipe penetrations, cold joints where one pour met the next. These cracks allow water entry but rarely produce the dramatic inward deflection seen in block walls.

Pour joint failures are the poured wall equivalent of mortar joint failure. During construction, poured walls are sometimes cast in sections, creating a cold joint where one section cured before the adjacent section was poured. These cold joints are weaker than the surrounding concrete and can develop horizontal cracks under sustained lateral load. The resulting deflection measurement at a pour joint can mimic the mid-height horizontal crack pattern of a block wall, though the mechanism and repair approach differ.

How Do You Measure Basement Wall Deflection?

A 4-foot level and a tape measure are all you need. Deflection measurement is a straightforward process that any homeowner can perform. The goal is to quantify the plumb deviation — the horizontal distance the wall has moved inward from its original vertical position — at the point of maximum deflection. This measurement is what determines your wall's position on the basement wall staging scale.

Multiple measurement points give a more complete picture. Take readings at three locations along the wall — each end and the center. Bowing is not always uniform. One section may deflect more than another due to differences in backfill depth, soil conditions, or the location of downspout discharge on the exterior. For a broader understanding of what to do with your measurements, our complete guide to basement water pressure connects deflection data to repair decisions.

Document with photographs in addition to measurements. Place a ruler or tape measure against the wall at the deflection point and photograph it with the date visible. Photo documentation creates a visual record that supplements your pencil marks and written log. If you later consult with a structural engineer or contractor, this timeline of measurements and photos will be the most valuable information you can provide.

When Is Bowing Wall Damage a Structural Emergency?

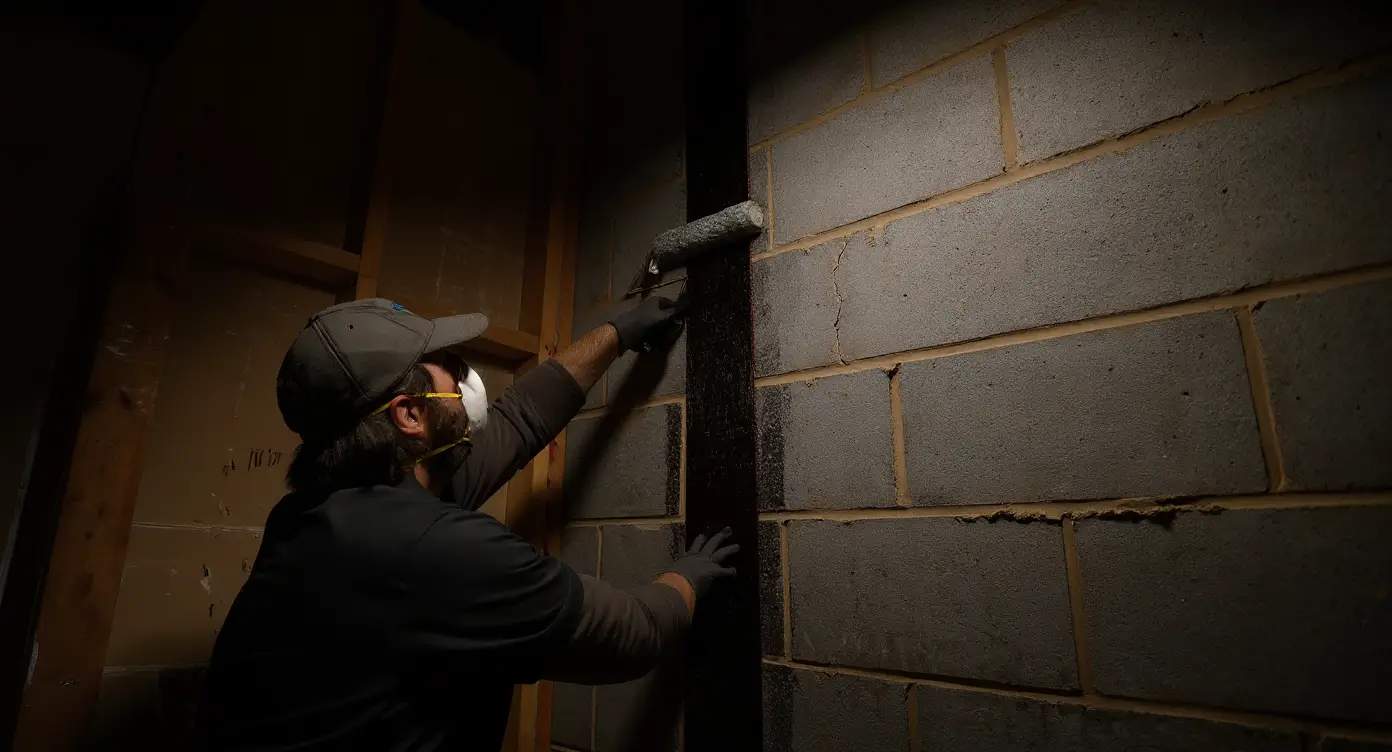

Any wall at Stage 3 or beyond requires professional structural evaluation. Once deflection exceeds 2 inches, the wall has moved past its design limits and the risk of progressive failure increases with every pressure cycle. Wall rotation at the base — where the bottom of the wall kicks inward while the top remains held by the floor system — is a particularly dangerous condition because it can lead to sudden shearing along multiple mortar joints simultaneously.

Severe wall bowing is a structural failure, not just a water problem. The water pressure that caused the wall to bow is a basement waterproofing concern. But the wall deflection itself is a structural concern with implications for the entire building above it. If your wall has deflected more than 2 inches, the structural implications are explained in detail at Foundation Integrity Authority's structural symptoms resource.

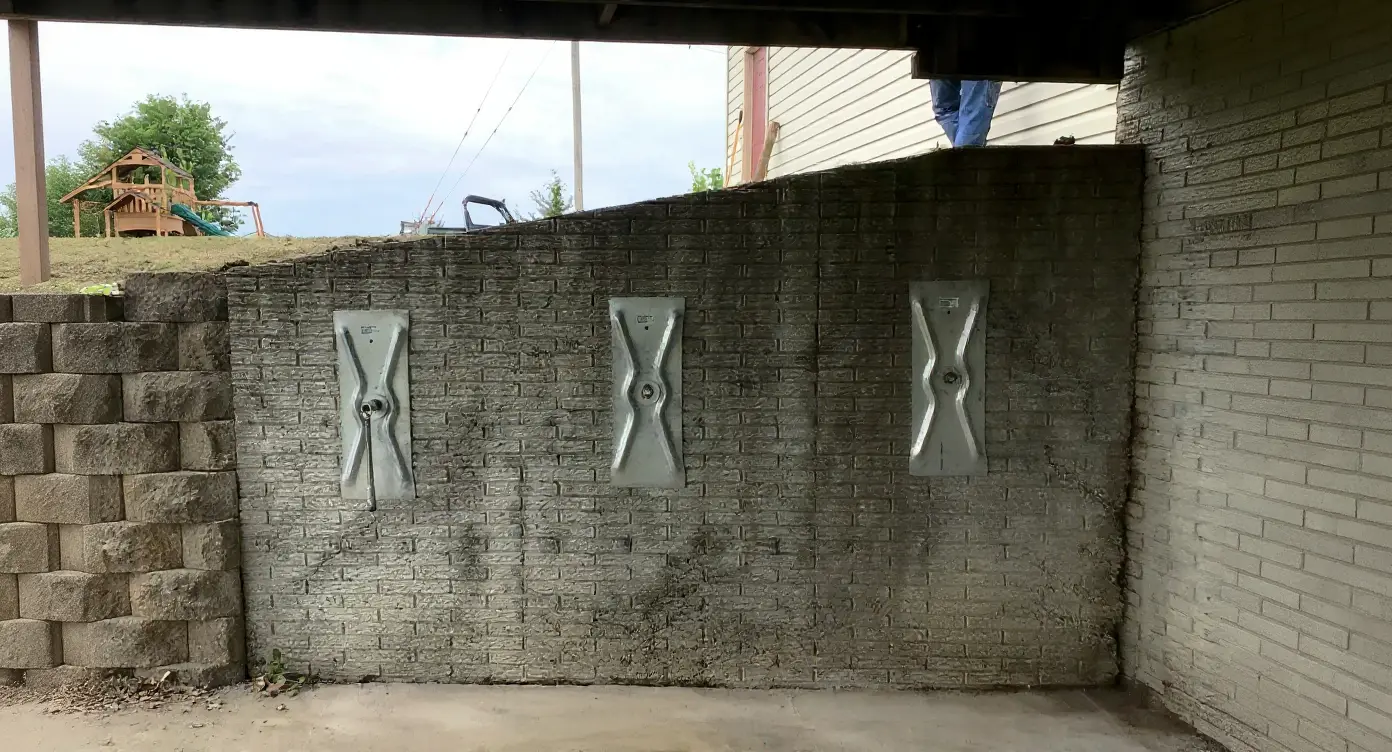

Repair methods are matched to the stage of damage. Stage 2 walls are candidates for wall anchor systems that stabilize the wall and may allow gradual straightening over time. Stage 3 walls typically require steel I-beam reinforcement or helical tieback systems that provide higher resistance than carbon fiber or standard anchors. For current pricing across all wall repair methods in Kansas City and Des Moines, see our basement waterproofing and wall repair cost guide.

Spring is the highest-risk season for wall progression. If you have identified bowing and measured deflection, re-check the measurement after the spring saturation period (April through June in both Kansas City and Des Moines). The spring pressure surge — when snowmelt and rainfall combine to produce the year's highest soil saturation — is when walls are most likely to progress from one stage to the next. Any measurable increase in deflection between annual readings confirms that the wall is actively failing.
